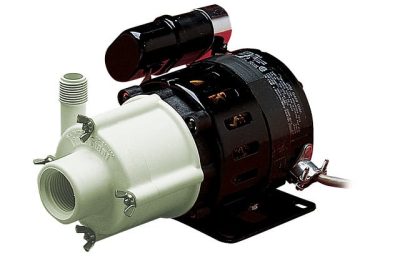

The 5-MD-SC includes a 1/8 hp motor plus glass-filled polypropylene magnet housing and volute. Circulation of moderately corrosive acids, alkalis, solvents, brine, plating solutions, sterile solutions, and other moderately corrosive chemicals and solutions that are compatible with the pump’s material of construction.
| Item: | 583513 |
| Model: | 5-MD-SC |
Ratings |
|
| HP | 1/8 hp |
| Frequency | 50Hz/60Hz |
| Amps – Full Load | 1.1 A |
| Full Load Watts | 240 W |
| Volts | 230 VAC |
| Cord Length | 6 ft |
| Maximum Flow Rate – 60Hz | 17.5 gpm / 1050 gph |
| Shut-Off | 27.5 ft |
| Max PSIG – 60Hz | 11.9 PSI |
Liquid |
|
| Max Fluid Temperature | 150 °F |
Materials of Construction |
|
| Discharge Head Material | Thermoplastic |
Installation |
|
| Discharge Type | Threaded – MNPT |
| Suction Type | Threaded – FNPT |
| Product Length | 8.7 “ |
| Product Width | 5.5 “ |
| Product Height | 5.5 “ |
| Product Weight | 9.3 lb |
| Product Weight w/ Pack | 10 lb |
| Carton Length | 11.31 “ |
| Carton Width | 7.06 “ |
| Carton Height | 6.44 “ |
Other |
|
| Standard Warranty | 12 Months |
