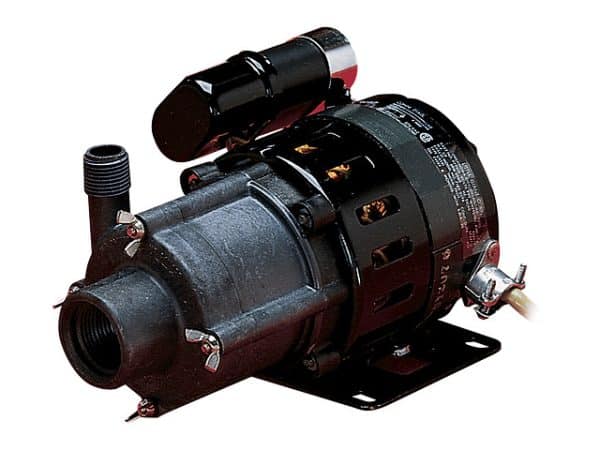

Magnetically driven pumps for highly corrosive chemicals and solutions. These pumps feature polyphenylene sulfide, Viton, carbon and ceramic parts. Thermally protected open fan-cooled motor with sleeve bearings. 6 ft power cord and 3-prong molded plug.
| Item: | 583603 |
| Model: | 5-MD-HC (115V) |
Ratings |
|
| HP | 1/8 hp |
| Frequency | 50Hz/60Hz |
| Amps – Full Load | 2.02 A |
| Full Load Watts | 240 W |
| Volts | 115 VAC |
| Cord Length | 6 ft |
| Maximum Flow Rate – 60Hz | 17.5 gpm / 1050 gph |
| Minimum Flow Rate – 60Hz | 0.02 gpm / 1 gph |
| Shut-Off | 27.5 ft |
| Minimum Head – 60Hz | 1 ft |
| Shut Off Height – 60Hz | 27.5 ft |
| Max PSIG – 60Hz | 11.9 PSI |
| Switch Type | Manual |
Liquid |
|
| Max Fluid Temperature | 200 °F |
Materials of Construction |
|
| Pump Body Material | Plastic |
| Discharge Head Material | Thermoplastic |
| Impeller Material | GF Polypropylene |
Installation |
|
| Discharge Type | Threaded – MNPT |
| Suction Type | Threaded – FNPT |
| Product Length | 8.81 “ |
| Product Width | 5.41 “ |
| Product Height | 5.54 “ |
| Pump Length | 8.81 “ |
| Product Weight | 9 lb |
| Product Weight w/ Pack | 9.5 lb |
| Carton Length | 11.5 “ |
| Carton Width | 7.25 “ |
| Carton Height | 6.75 “ |
Other |
|
| Standard Warranty | 12 Months |
