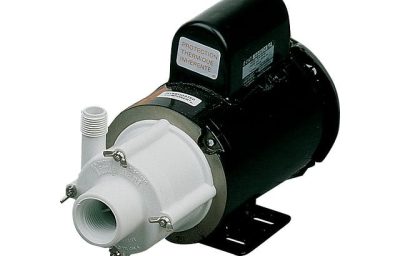

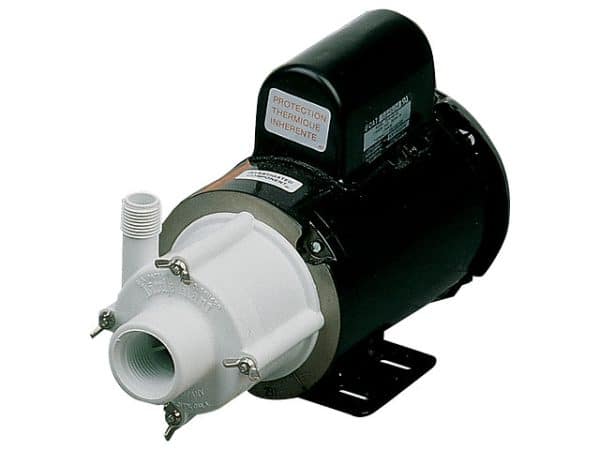

Little Giant MD-SC series features leak-proof, seal-less magnetic drives and are designed for in-line, non submersible use. Volute, magnet housing and impeller are glass-filled polypropylene for excellent chemical resistance.
| Item: | 584504 |
| Model: | TE-5-MD-SC |
Ratings |
|
| HP | 1/8 hp |
| Frequency | 50Hz/60Hz |
| Amps – Full Load | 3 A |
| Full Load Watts | 325 W |
| Volts | 115 VAC |
| Cord Length | 6 ft |
| Maximum Flow Rate – 60Hz | 20 gpm / 1200 gph |
| Shut-Off | 29.3 ft |
| Max PSIG – 60Hz | 12.7 PSI |
Liquid |
|
| Max Fluid Temperature | 150 °F |
Materials of Construction |
|
| Discharge Head Material | Thermoplastic |
Installation |
|
| Discharge Type | Threaded – MNPT |
| Suction Type | Threaded – FNPT |
| Product Length | 11.16 “ |
| Product Width | 5.2 “ |
| Product Height | 7.2 “ |
| Pump Length | 11.16 “ |
| Product Weight | 15.65 lb |
| Product Weight w/ Pack | 16.15 lb |
| Carton Length | 13.5 “ |
| Carton Width | 7 “ |
| Carton Height | 10.5 “ |
Other |
|
| Standard Warranty | 12 Months |
