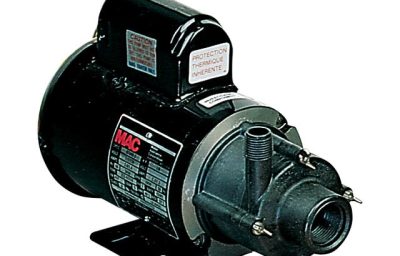

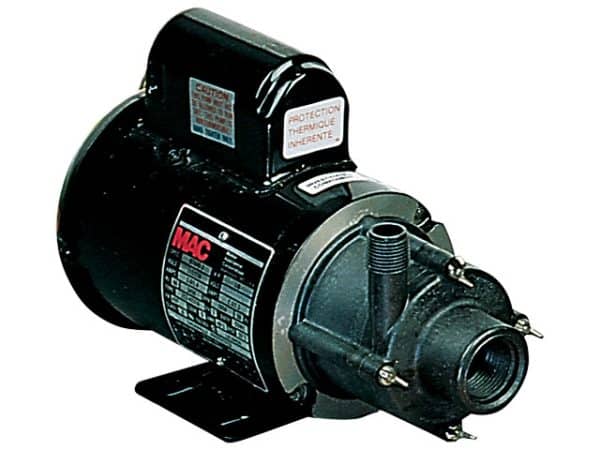

Pump Head Less Motor features a thermally protected, totally enclosed, fan cooled, permanent split capacitor motor, 6′ power cord with 3-prong plug (not installed). Specific gravity to 1.1 with fluid temperature to 200°F and ambient air temperature to 77°F. Run-dry capability up to 8 hours.
| Item: | 584698 |
| Model: | TE-5 |
Ratings |
|
| HP | 1/8 hp |
| Frequency | 50Hz/60Hz |
| Amps – Full Load | 2.3 A |
| Full Load Watts | 325 W |
| Cord Length | 6 ft |
| Maximum Flow Rate – 60Hz | 20 gpm / 1200 gph |
| Minimum Flow Rate – 60Hz | 0.03 gpm / 2 gph |
| Shut-Off | 29.3 ft |
| Minimum Head – 60Hz | 1 ft |
| Shut Off Height – 60Hz | 29.3 ft |
| Switch Type | Manual |
Liquid |
|
| Max Fluid Temperature | 200 °F |
Materials of Construction |
|
| Pump Body Material | Plastic |
| Impeller Material | GF Polypropylene |
Installation |
|
| Suction Type | Threaded – FNPT |
| Product Weight w/ Pack | 2.17 lb |
| Carton Length | 7.13 “ |
| Carton Width | 4 “ |
| Carton Height | 5.31 “ |
Other |
|
| Minimum Order Quantity | 1 |
| Standard Warranty | 12 Months |
