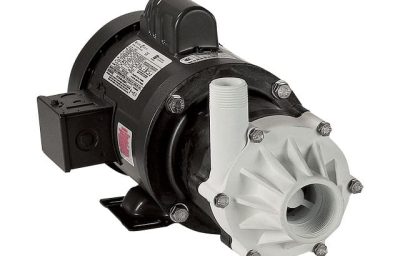

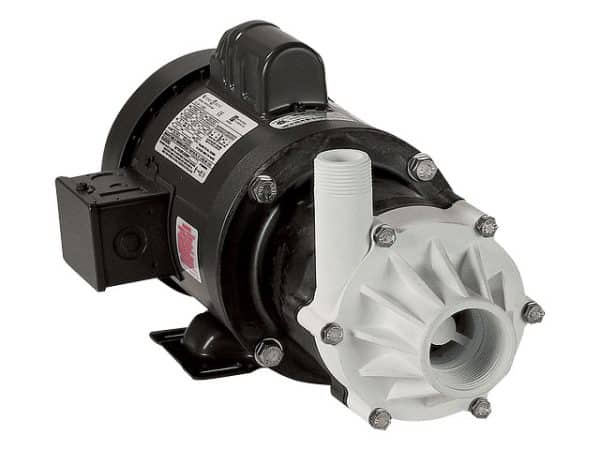

Magnetically driven pumps for semi-corrosive chemicals and solutions. The MD-SC Series features leak proof, seal-less magnetic drives and are designed for in-line, non-submersed use. These pumps feature polypropylene, ceramic and Buna-n® parts. Thermally protected, totally enclosed split-phase fan-cooled motor with ball bearings.
| Item: | 587400 |
| Model: | TE-7-MD-SC |
Ratings |
|
| HP | 3/4 hp |
| Frequency | 50Hz/60Hz |
| Amps – Full Load | 11.8 A |
| Full Load Watts | 1230 W |
| Volts | 110-240 VAC |
| Maximum Flow Rate – 60Hz | 53 gpm / 3180 gph |
| Minimum Flow Rate – 60Hz | 2 gpm / 120 gph |
| Shut-Off | 191.93 ft |
| Minimum Head – 60Hz | 2 ft |
| Shut Off Height – 60Hz | 58.5 ft |
| Max PSIG – 60Hz | 25.5 PSI |
| Switch Type | Manual |
Liquid |
|
| Max Fluid Temperature | 150 °F |
Materials of Construction |
|
| Pump Body Material | Plastic |
| Discharge Head Material | Thermoplastic |
| Impeller Material | GF Polypropylene |
Installation |
|
| Discharge Type | Threaded – MNPT |
| Suction | 1.5 “ |
| Suction Type | Threaded – FNPT |
| Product Length | 17.18 “ |
| Product Width | 8.56 “ |
| Product Height | 8.5 “ |
| Pump Length | 17.18 “ |
| Product Weight | 39.5 lb |
| Product Weight w/ Pack | 40 lb |
| Carton Length | 21 “ |
| Carton Width | 11.5 “ |
| Carton Height | 10 “ |
Other |
|
| Standard Warranty | 12 Months |
