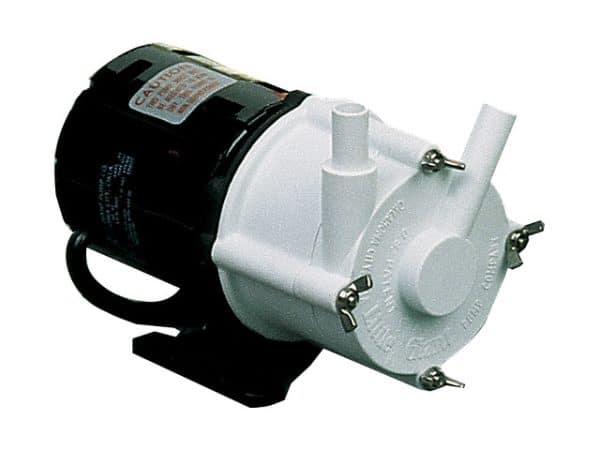

Magnetically driven pump for mildly corrosive chemicals and solutions, the MD series features leakproof, seal-less magnetic drives and is designed for in-line, non-submersible use. Volute and magnet housing are glass-filled polypropylene for excellent chemical resistance. Impeller is glass-filled polypropylene and ceramagnet “A” (barium ferrite). Shaft and thrust washers are titanium for excellent wear and trouble-free service.
| Item: | 589002 |
| Model: | 1-MD |
Ratings |
|
| HP | 1/70 hp |
| Frequency | 60 Hz |
| Amps – Full Load | 0.79 A |
| Full Load Watts | 60 W |
| Volts | 115 VAC |
| Cord Length | 6 ft |
| Maximum Flow Rate – 60Hz | 3 gpm / 180 gph |
| Minimum Flow Rate – 60Hz | 0.01 gpm / 1 gph |
| Shut-Off | 10.6 ft |
| Minimum Head – 60Hz | 1 ft |
| Shut Off Height – 60Hz | 10.6 ft |
| Max PSIG – 60Hz | 4.6 PSI |
| Switch Type | Manual |
Liquid |
|
| Max Fluid Temperature | 150 °F |
Materials of Construction |
|
| Pump Body Material | Plastic |
| Discharge Head Material | Thermoplastic |
| Impeller Material | GF Polypropylene |
Installation |
|
| Discharge | 0.5 “ |
| Suction | 0.5 “ |
| Product Length | 8.3 “ |
| Product Width | 4 “ |
| Product Height | 5 “ |
| Product Weight | 3.5 lb |
| Product Weight w/ Pack | 4 lb |
Other |
|
| Minimum Order Quantity | 1 |
| Standard Warranty | 12 Months |
