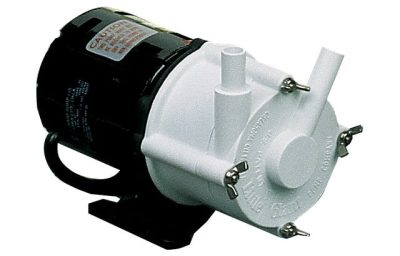

The Little Giant 1-MD Chemical Pump is a pre-assembled magnetic drive industrial pump, is non-submersible, and is for in-line use. It is suitable for the movement of slightly corrosive solvents, acids, alkalis, and other chemicals and solutions that are compatible with the material that was used to make the pump.
| Item: | 589012 |
| Model: | 1-MD |
Ratings |
|
| HP | 1/70 hp |
| Frequency | 50Hz/60Hz |
| Amps – Full Load | 0.64 A |
| Full Load Watts | 100 W |
| Volts | 230 VAC |
| Cord Length | 6 ft |
| Maximum Flow Rate – 60Hz | 3 gpm / 180 gph |
| Minimum Flow Rate – 60Hz | 0.01 gpm / 1 gph |
| Shut-Off | 10.6 ft |
| Minimum Head – 60Hz | 1 ft |
| Shut Off Height – 60Hz | 10.6 ft |
| Max PSIG – 60Hz | 4.6 PSI |
| Switch Type | Manual |
Liquid |
|
| Max Fluid Temperature | 150 °F |
Materials of Construction |
|
| Pump Body Material | Plastic |
| Discharge Head Material | Thermoplastic |
| Impeller Material | GF Polypropylene |
Installation |
|
| Discharge | 0.5 “ |
| Suction | 0.5 “ |
| Product Length | 8.3 “ |
| Product Width | 4 “ |
| Product Height | 5 “ |
| Product Weight | 6.25 lb |
| Product Weight w/ Pack | 6.25 lb |
| Carton Length | 11.31 “ |
| Carton Width | 7.06 “ |
| Carton Height | 6.44 “ |
Other |
|
| Minimum Order Quantity | 1 |
| Standard Warranty | 12 Months |
