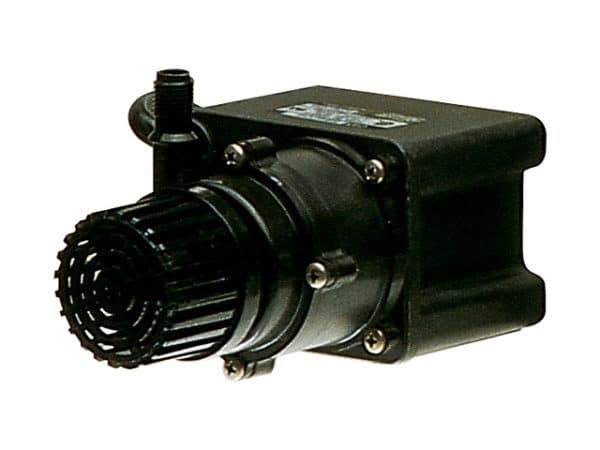

SC Series magnetic drive pump for the circulation of moderately corrosive acids, alkalis, solvents, brine, plating solutions, sterile solutions, and other moderately corrosive chemicals and solutions that are compatible with the pump’s material of construction. Features 1/35 hp encapsulated motor with glass-filled polypropylene magnetic housing and volute.
| Item: | 589204 |
| Model: | PE |
Ratings |
|
| Frequency | 50 Hz |
| Amps – Full Load | 0.9 A |
| Full Load Watts | 63 W |
| Volts | 115 VAC |
| Cord Length | 6 ft |
| Maximum Flow Rate – 60Hz | 5.5 gpm / 330 gph |
| Minimum Flow Rate – 60Hz | 0.01 gpm / 1 gph |
| Shut-Off | 12.8 ft |
| Minimum Head – 60Hz | 1 ft |
| Max PSIG – 60Hz | 5.5 PSI |
| Switch Type | Manual |
Liquid |
|
| Max Fluid Temperature | 150 °F |
Materials of Construction |
|
| Pump Body Material | Plastic |
| Discharge Head Material | Thermoplastic |
| Impeller Material | GF Polypropylene |
| Intake Screen Material | Polypropylene |
Installation |
|
| Discharge Type | Threaded – MNPT |
| Suction Type | Screened |
| Product Length | 7.5 “ |
| Product Width | 4 “ |
| Product Height | 3.8 “ |
| Product Weight w/ Pack | 5 lb |
| Carton Length | 7.13 “ |
| Carton Width | 4 “ |
| Carton Height | 5.31 “ |
Other |
|
| Minimum Order Quantity | 1 |
| Standard Warranty | 12 Months |
