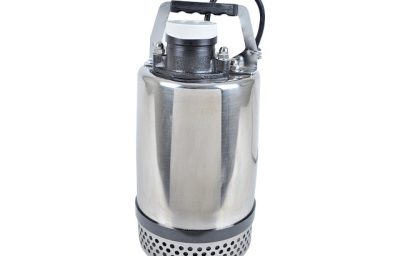

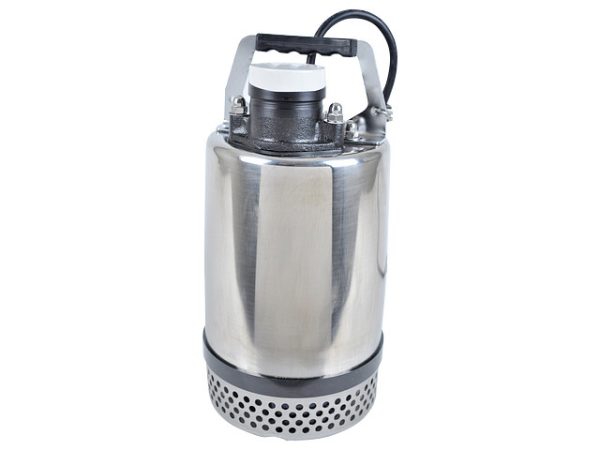

The FLS-750 utility pump from Little Giant has stainless steel motor housing and is designed for continuous duty. Uses for this utility pump include water transfer, water circulation, construction sites, and other applications requiring high volume water dispersal. Features 1 HP permanent split capacitor (PSC) motor with thermal overload protection, 115 volt, and 2″ MNPT discharge (5.08 cm).
| Item: | 620241 |
| Model: | FS-750 |
Ratings |
|
| HP | 1 hp |
| Frequency | 60 Hz |
| Phase | Single-Phase |
| Amps – Full Load | 10 A |
| Amps – Starting | 47.6 A |
| Full Load Watts | 950 W |
| Volts | 115 VAC |
| Cord Length | 20 ft |
| Pump Power Cord Type | SJTW |
| Pump Power Cord Gauge | 14-3 |
| Motor Type | Submersible |
| Continuous Duty | Yes |
| Thermal Overload Protection | Yes |
| Maximum Flow Rate – 60Hz | 80 gpm / 4800 gph |
| Shut-Off | 52 ft |
| Max PSIG – 60Hz | 22.5 PSI |
| Max Solid Handling Size | 0.06 “ |
| Switch Type | Manual |
| Motor Cooling | Oil |
Liquid |
|
| Max Fluid Temperature | 120 °F |
Materials of Construction |
|
| Pump Base Material | Plastic |
| Pump Body Material | Aluminum |
| Pump Volute Material | Cast Iron |
| Impeller Type | Semi-open |
| Impeller Material | Ductile Iron |
| Motor Shaft End – Material | Stainless Steel |
| Intake Screen Material | Stainless Steel |
| Fasteners Material | Stainless Steel |
| Top Bearing Material | Steel |
| Top Bearing Type | Ball |
| Bottom Bearing Material | Steel |
| Bottom Bearing Type | Ball Bearing |
| Seal Material | Viton Retainer |
| Seal Type | Retainer |
Installation |
|
| Discharge Type | Threaded – MNPT |
| Discharge | 2 “ |
| Product Length | 7 “ |
| Product Width | 7 “ |
| Product Height | 14 “ |
| Pump Length | 7 “ |
| Product Weight | 36 lb |
| Product Weight w/ Pack | 36 lb |
| Carton Length | 8 “ |
| Carton Width | 9 “ |
| Carton Height | 17 “ |
Other |
|
| Accessories Included | None |
| Minimum Order Quantity | 1 |
| Electrical Agency Approvals | CSA |
| Standard Warranty | 12 Months |
