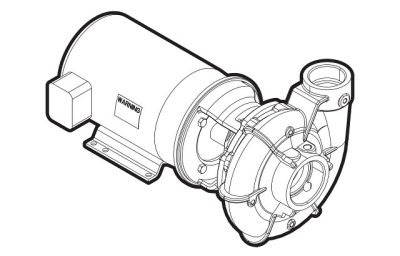

Franklin Electric FEGBLV-200TE Booster Pump (63250245201)
Supplying Water Pump Parts Since 1991
Shipping Across the U.S. & Canada
Same-Day Shipping on Eligible Orders
The XS Series was designed with performance, serviceability and reliability in mind.
| Item: | 63250245201 |
| Model: | FEGBLV-200TE |
Ratings |
|
| HP | 2 hp |
| Frequency | 60 Hz |
| Phases | Three-Phase |
| Volts | 460 VAC |
| Poles | 2 |
| Stages | 1 |
| Motor Enclosure | TEFC |
| Pump rpm – 60 Hz | 3600 |
Liquid |
|
| Maximum Fluid Temperature | 212 °F |
Materials of Construction |
|
| Pump Body Material | Cast Iron |
| Impeller | Closed |
| Impeller Material | Stainless Steel |
| Seal | Mechanical Seal |
Dimensions |
|
| Discharge | Threaded – FNPT |
| Discharge Diameter | 2 “ |
| Impeller Diameter | 4.5 “ |
| Suction Diameter | 2.5 “ |
| Suction | Threaded – FNPT |
| Product Weight | 65 lb |
Other |
|
| Warranty Standard Time | 12 Months |
Send us your model number and we will confirm fit, price, and availability.
