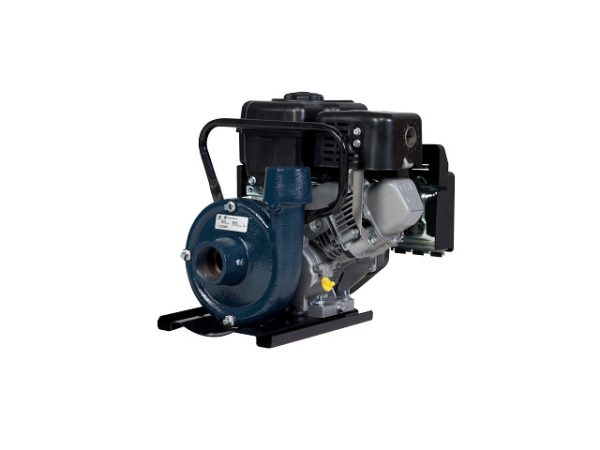

Our centrifugal gas engine pumps can be used in mining, irrigation, construction and other heavyduty applications.
| Item: | 90261105 |
| Model: | FACGF-5H |
Our centrifugal gas engine pumps can be used in mining, irrigation, construction and other heavyduty applications.
| Item: | 90261105 |
| Model: | FACGF-5H |
Ratings |
|
| Frequency | 60 Hz |
| Engine Size – Driven Pumps (CC) | 160 |
| Stages | 1 |
| Pump rpm – 60 Hz | Various |
Liquid |
|
| Maximum Fluid Temperature | 212 °F |
Materials of Construction |
|
| Pump Body Material | Cast Iron |
| Impeller | Closed |
| Impeller Material | Cast Iron |
| Seal | Mechanical Seal |
| Engine Brand For Driven Pumps | Honda |
| Engine Type For Driven Pumps | Air Cooled, 4 Stroke, OHV |
Dimensions |
|
| Discharge | Threaded – FNPT |
| Discharge Diameter | 2 “ |
| Impeller Diameter | 6.06 “ |
| Suction Diameter | 2 “ |
| Suction | Threaded – FNPT |
| Pump Length | 16.35 “ |
| Product Weight | 62 lb |
| Pump Height | 13.92 “ |
| Pump Width | 15.6 “ |
Other |
|
| Warranty Standard Time | 12 Months |
