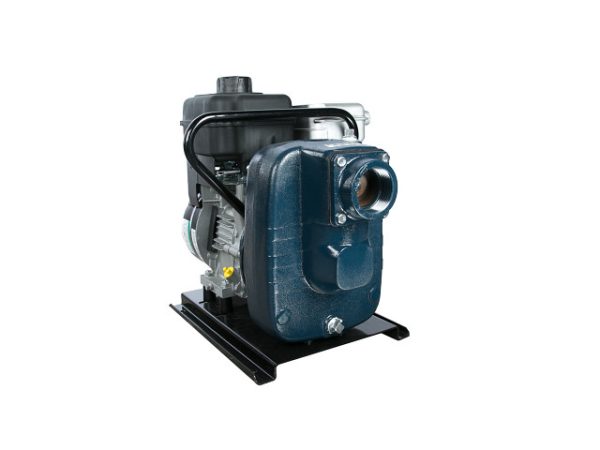

Franklin Electric FNSGF-8H Self-Priming Pump (90272108)
Supplying Water Pump Parts Since 1991
Shipping Across the U.S. & Canada
Same-Day Shipping on Eligible Orders
These heavy-duty, gas engine, self-priming pumps are an ideal choice for water transfer applications and temporary irrigation.
| Item: | 90272108 |
| Model: | FNSGF-8H |
Ratings |
|
| Motor | Surface |
| Protection [IP] | Not Applicable |
| Engine Size – Driven Pumps (CC) | 270 |
| Stages | 1 |
| Motor NEMA Frame Type | not applicable |
| Motor Cooling | Air |
| Rotation | Clockwise facing the shaft |
| Temperature Rating | 200 °F |
Liquid |
|
| Maximum Fluid Temperature | 200 °F |
Materials of Construction |
|
| Pump Body Material | Cast Iron |
| Impeller | Closed |
| Impeller Material | Cast Iron |
| Motor Bracket Material | Cast Iron |
| Discharge Material | Cast Iron |
| Seal Material | Carbon/Ceramic, FKM, 300 series S.S. |
| Seal | Mechanical Seal |
| Diffuser Material | Cast Iron |
| Suction Material | Cast Iron |
| Engine Brand For Driven Pumps | Honda |
| Engine Type For Driven Pumps | Air Cooled, 4 Stroke, OHV |
Dimensions |
|
| Discharge | Threaded – FNPT |
| Discharge Diameter | 2 “ |
| Impeller Diameter | 6.56 “ |
| Suction Diameter | 2.5 “ |
| Suction | Threaded – FNPT |
| Product Length | 23.66 “ |
| Product Width | 17.31 “ |
| Product Height | 17.75 “ |
| Pump Length | 23.66 “ |
| Product Weight | 118 lb |
| Carton Length | 23 “ |
| Carton Width | 21.69 “ |
| Carton Height | 22.44 “ |
| Pump Height | 17.75 “ |
| Pump Width | 17.31 “ |
Other |
|
| Warranty Standard Time | 12 Months |
| Applications | Irrigation, Construction, Mining, Commercial, Municipal, Light Industrial |
Send us your model number and we will confirm fit, price, and availability.
