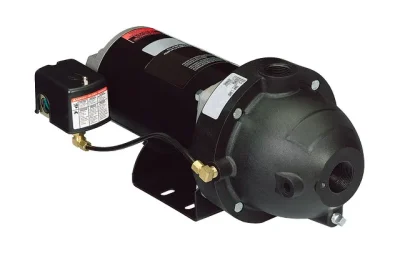

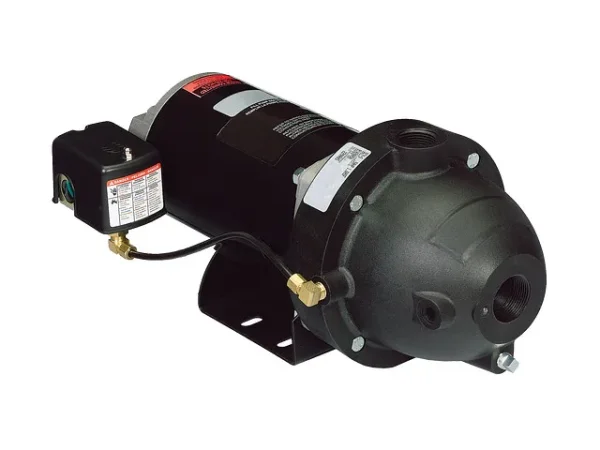

The Franklin Electric 91090005-FSWJ05P Shallow Well Jet pump features non-corrosive thermoplastic construction, making it ideal for clean water installations without the risk of corrosion. The self-cleaning injector screen provides an additional level of anti-clogging for turbid environments where a shallow well jet pump is required.
| Item: |
91090005 |
| Model: |
FSWJ05P |
Ratings
|
| HP |
1/2 hp |
| Frequency |
60 Hz |
| Phases |
Single-Phase |
| Volts |
115 VAC / 230 VAC |
| Amps at 230 Volts |
6.2 A |
| Motor Enclosure |
ODP |
Liquid
|
| Maximum Fluid Temperature |
120 °F |
Materials of Construction
|
| Pump Body Material |
Thermoplastic |
| Impeller |
Closed |
| Impeller Material |
Thermoplastic |
| Seal Material |
Phenolic/Ceramic x Buna-N |
| Seal |
Mechanical Seal |
Dimensions
|
| Discharge |
Threaded – FNPT |
| Discharge Diameter |
1 “ |
| Suction Diameter |
1.25 “ |
| Suction |
Threaded – FNPT |
| Pump Length |
18.19 “ |
| Product Weight |
23 lb |
| Product Weight with Pack |
23 lb |
| Carton Length |
19.88 “ |
| Carton Width |
11 “ |
| Carton Height |
12.25 “ |
| Pump Height |
8.19 “ |
| Pump Width |
9.91 “ |
Other
|
| Drinking Water Agency Approvals |
NSF/ANSI 372 |
| Warranty Standard Time |
24 Months |
| Applications |
Ideal for the supply of fresh water to rural homes, farms, and cabins |
