Franklin Electric VersaJet FVJ07CI Shallow Well Jet Pump, Cast Iron, 3/4 HP, 115/230V
Supplying Water Pump Parts Since 1991
Shipping Across the U.S. & Canada
Same-Day Shipping on Eligible Orders

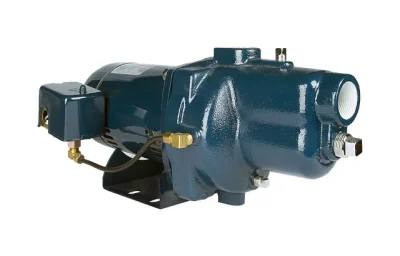

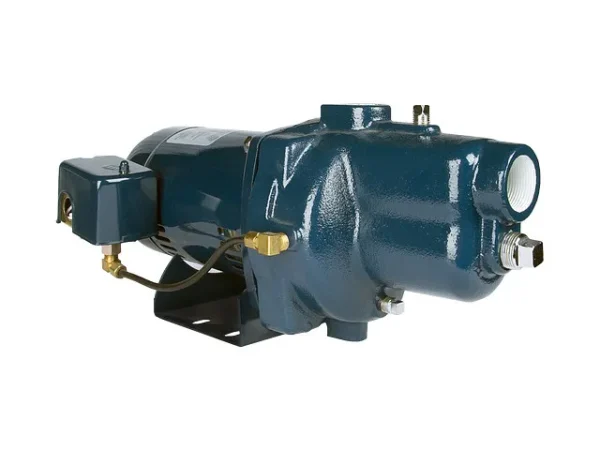

The Franklin Electric 91180007–FVJ07CI VersaJet Cast Iron Pump is designed for shallow well applications and is capable of raising water from a depth of 25 feet. All mechanical parts, motor, impeller, and electrical controls are above ground within easy reach. The VersaJet shallow well jet pump line offers a wide range of pressures and flows, but this may require replacing the standard factory-installed jet nozzle with one of the other provided nozzles.
| Item: | 91180007 |
| Model: | FVJ07CI |
Ratings |
|
| HP | 3/4 hp |
| Frequency | 60 Hz |
| Phases | Single-Phase |
| Volts | 115 VAC / 230 VAC |
| S.F. | 1.27 |
| Amps at 230 Volts | 6.2 A |
| Motor Enclosure | ODP |
Liquid |
|
| Maximum Fluid Temperature | 120 °F |
Materials of Construction |
|
| Pump Body Material | Cast Iron |
| Impeller | Closed |
| Impeller Material | Modified PPO |
| Seal Material | Phenolic/Ceramic x Buna-N |
| Seal | Mechanical Seal |
Dimensions |
|
| Discharge | Threaded – FNPT |
| Discharge Diameter | 1 “ |
| Suction Diameter | 1.25 “ |
| Suction | Threaded – FNPT |
| Pump Length | 18 “ |
| Product Weight | 34 lb |
| Product Weight with Pack | 34 lb |
| Carton Length | 19.88 “ |
| Carton Width | 11 “ |
| Carton Height | 12.25 “ |
| Pump Height | 7.97 “ |
| Pump Width | 9.18 “ |
Other |
|
| Drinking Water Agency Approvals | NSF/ANSI 372 |
| Warranty Standard Time | 24 Months |
| Applications | Ideal for the supply of fresh water to rural homes, farms, and cabins |
Send us your model number and we will confirm fit, price, and availability.
