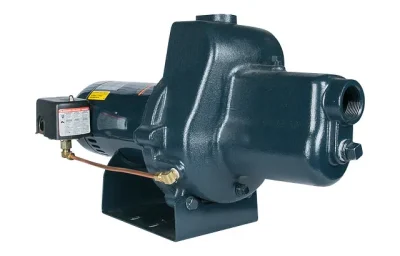

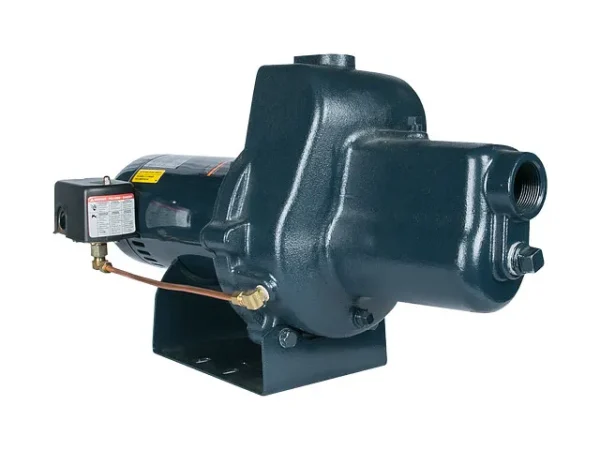

The Franklin Electric 91181007–FVJ07CI-P VersaJet Pro Cast Iron Pump is built for easy customization, with just one pump covering a variety of performance needs. With our patent-pending nozzle replacement system and a small Allen wrench (included), the internal nozzle can be replaced with any of the three nozzles supplied to achieve the exact performance needed for any application requiring a shallow well jet pump.
| Item: | 91181007 |
| Model: | FVJ07CI-P |
Ratings |
|
| HP | 3/4 hp |
| Frequency | 60 Hz |
| Phases | Single-Phase |
| Volts | 115 VAC / 230 VAC |
| Amps at 230 Volts | 7.4 A |
| Motor Enclosure | ODP |
Liquid |
|
| Maximum Fluid Temperature | 120 °F |
Materials of Construction |
|
| Pump Body Material | Cast Iron |
| Impeller | Closed |
| Impeller Material | Modified PPO |
| Seal Material | Phenolic/Ceramic x Buna-N |
| Seal | Mechanical Seal |
Dimensions |
|
| Discharge | Threaded – FNPT |
| Discharge Diameter | 1 “ |
| Suction Diameter | 1.25 “ |
| Suction | Threaded – FNPT |
| Pump Length | 21.78 “ |
| Product Weight | 51 lb |
| Product Weight with Pack | 51 lb |
| Carton Length | 19.88 “ |
| Carton Width | 11 “ |
| Carton Height | 12.25 “ |
| Pump Height | 12.88 “ |
| Pump Width | 10.68 “ |
Other |
|
| Drinking Water Agency Approvals | NSF/ANSI 372 |
| Warranty Standard Time | 24 Months |
| Applications | Ideal for the supply of fresh water to rural homes, farms, and cabins |
