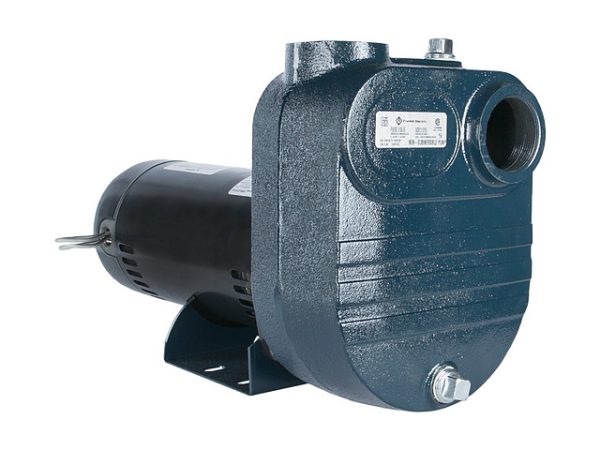

FBSE-50-S Self-Priming 1/2hp 115/230v 1ph ODP 1-1/4 x 1-1/4″ FNPT with cast iron volute/semi-open cast iron impeller. Mechanical seal carbon/ceramic faces, FKM elastomers, and 300-series stainless steel components
| Item: | 92931005 |
| Model: | FBSE-50-S |
Ratings |
|
| HP | 1/2 hp |
| Frequency | 60 Hz |
| Phases | Single-Phase |
| Volts | 115 VAC / 230 VAC |
| S.F. | 1.27 |
| Amps at 230 Volts | 6.2 A |
| Maximum Flow Rate – 60 Hz | 55 gpm |
| Motor Enclosure | ODP |
| Motor Cooling | Air |
| Temperature Rating | 120 °F |
Liquid |
|
| Maximum Fluid Temperature | 212 °F |
Materials of Construction |
|
| Pump Body Material | Cast Iron |
| Discharge Head Material | Cast Iron |
| Impeller | Semi-open |
| Impeller Material | Cast Iron |
| Seal Material | Carbon/Ceramic, FKM, 300 series S.S. |
| Seal | Mechanical Seal |
Dimensions |
|
| Discharge | Threaded – FNPT |
| Discharge Diameter | 1.25 “ |
| Suction Diameter | 1.25 “ |
| Suction | Threaded – FNPT |
| Pump Length | 15.46 “ |
| Product Weight | 41 lb |
| Pump Height | 9.86 “ |
| Pump Width | 7.5 “ |
Other |
|
| Warranty Standard Time | 12 Months |
| Applications | Irrigation Construction Mining Commercial Municipal Light Industrial Residential |
