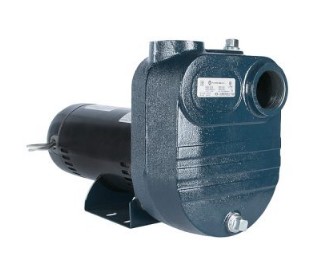

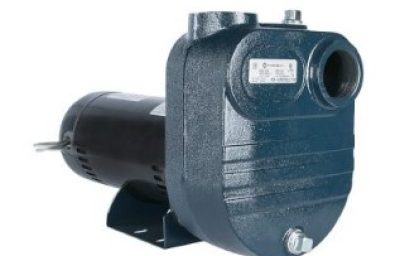

The FBSE series pumps are a close-coupled self-priming pump with durable cast iron construction, making them long-lasting in various applications. Thanks to its self-priming casing, the FBSE series close-coupled self-priming pump is designed for simple operation and engineered to quickly respond once it has been filled with water.
| Item: | 92931010 |
| Model: | FBSE-100-S |
Ratings |
|
| HP | 1 hp |
| Frequency | 60 Hz |
| Phases | Single-Phase |
| Volts | 115 VAC / 230 VAC |
| Amps at 230 Volts | 9.5 A |
| Motor Enclosure | ODP |
Liquid |
|
| Maximum Fluid Temperature | 212 °F |
Materials of Construction |
|
| Pump Body Material | Cast Iron |
| Impeller | Semi-open |
| Impeller Material | Cast Iron |
| Seal Material | Carbon/Ceramic, FKM, 300 series S.S. |
| Seal | Mechanical Seal |
Dimensions |
|
| Discharge | Threaded – FNPT |
| Discharge Diameter | 1.25 “ |
| Suction Diameter | 1.25 “ |
| Suction | Threaded – FNPT |
| Pump Length | 16.96 “ |
| Product Weight | 46 lb |
| Pump Height | 9.86 “ |
| Pump Width | 7.5 “ |
Other |
|
| Warranty Standard Time | 12 Months |
