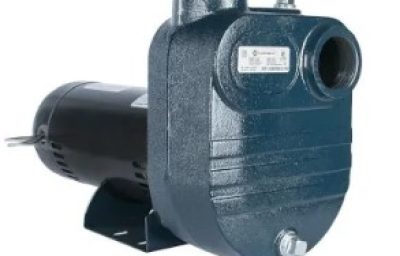

Franklin Electric FBSE-300-T Close-Coupled Self-Priming Pump, 3 HP, 230/460V
Supplying Water Pump Parts Since 1991
Shipping Across the U.S. & Canada
Same-Day Shipping on Eligible Orders
The FBSE series pumps are a close-coupled self-priming pump with durable cast iron construction, making them long-lasting in various applications. Thanks to its self-priming casing, the FBSE series close-coupled self-priming pump is designed for simple operation and engineered to quickly respond once it has been filled with water.
| Item: | 92933030 |
| Model: | FBSE-300-T |
Ratings |
|
| HP | 3 hp |
| Frequency | 60 Hz |
| Phases | Three-Phase |
| Volts | 230 VAC / 460 VAC |
| Amps at 230 Volts | 9 A |
| Motor Enclosure | ODP |
Liquid |
|
| Maximum Fluid Temperature | 212 °F |
Materials of Construction |
|
| Pump Body Material | Cast Iron |
| Impeller | Semi-open |
| Impeller Material | Cast Iron |
| Seal Material | Carbon/Ceramic, FKM, 300 series S.S. |
| Seal | Mechanical Seal |
Dimensions |
|
| Discharge | Threaded – FNPT |
| Discharge Diameter | 2 “ |
| Suction Diameter | 2 “ |
| Suction | Threaded – FNPT |
| Pump Length | 20.43 “ |
| Product Weight | 60 lb |
| Pump Height | 11.44 “ |
| Pump Width | 9.99 “ |
Other |
|
| Warranty Standard Time | 12 Months |
✔ Franklin Electric Supplier. ✔ Get Your Quote Today ✔ For Fast Service Call 303.699.7845 ✔ Repair Parts Are Available For This Model# 92933030 ✔ Fast Shipping Available
Send us your model number and we will confirm fit, price, and availability.
