Franklin Electric FBSEF-750-TE Close-Coupled Self-Priming Pump | 92934075

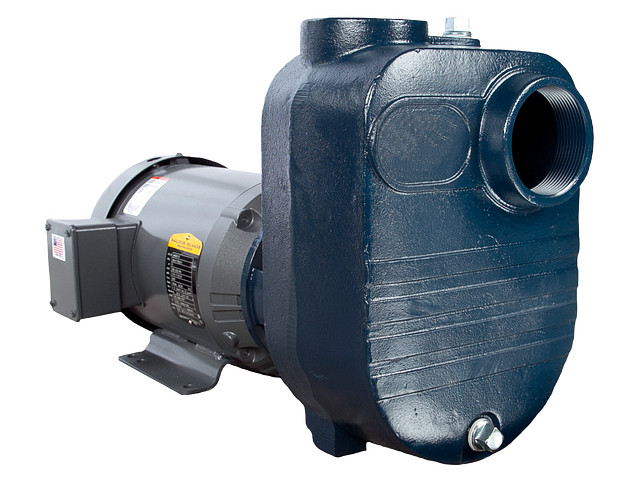

The Franklin Electric FBSEF-750-TE Model# 92934075 is a 7.5 HP three-phase close-coupled self-priming pump built for tough jobs. Capable of pumping up to 295 GPM at temperatures up to 212°F, it handles fertilizer, salt water, and dirty water with ease. The cast iron body and TEFC motor make it the reliable choice for irrigation, construction, and industrial applications.
| Item: | 92934075 |
| Model: | FBSEF-750-TE |
| Ratings | |
| HP | 7.5 hp |
| Frequency | 60 Hz |
| Phases | Three-Phase |
| Volts | 230 VAC / 460 VAC |
| Amps at 230 Volts | 19.4 A |
| Motor Enclosure | TEFC |
| Liquid | |
| Maximum Fluid Temperature | 212 °F |
| Materials of Construction | |
| Pump Body Material | Cast Iron |
| Impeller | Semi-open |
| Impeller Material | Cast Iron |
| Seal Material | Carbon/Ceramic, FKM, 300 series S.S. |
| Seal | Mechanical Seal |
| Dimensions | |
| Discharge | Threaded – FNPT |
| Discharge Diameter | 3 “ |
| Suction Diameter | 3 “ |
| Suction | Threaded – FNPT |
| Pump Length | 25.67 “ |
| Product Weight | 161 lb |
| Pump Height | 14 “ |
| Pump Width | 11.5 “ |
| Other | |
| Warranty Standard Time | 12 Months |
