Franklin Electric 5FPDBL2-TE Close-Coupled Centrifugal Pump, 1/2 HP, 230/460V
Supplying Water Pump Parts Since 1991
Shipping Across the U.S. & Canada
Same-Day Shipping on Eligible Orders

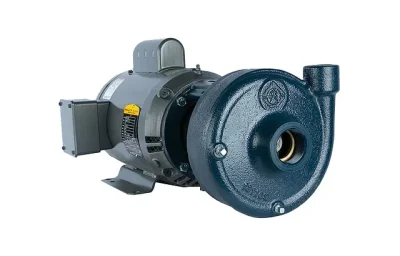

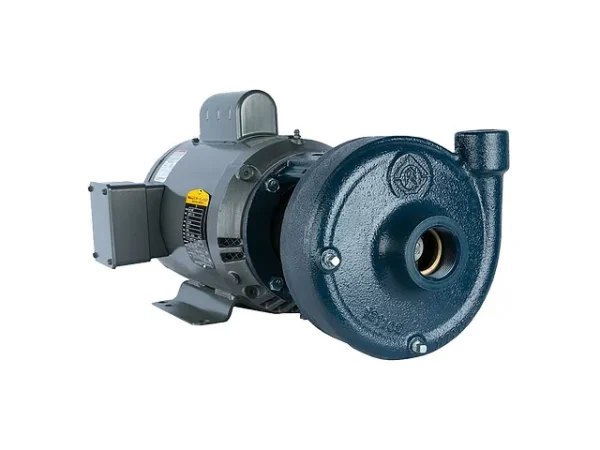

The Franklin Electric 93162724–5FPDBL2-TE Centrifugal Pump features robust D Series centrifugal pumps with heavy-duty cast iron bodies for durability and dynamically balanced impellers for reduced bearing loads and pump longevity. With models ranging from 0.5 to 50 hp, single- and three-phase motor options, as well as TEFC and ODP enclosure options, this close-coupled centrifugal pump is sure to meet the demands of various applications.
| Item: | 93162724 |
| Model: | 5FPDBL2-TE |
Ratings |
|
| HP | 1/2 hp |
| Frequency | 60 Hz |
| Phases | Three-Phase |
| Volts | 230 VAC / 460 VAC |
| Amps at 230 Volts | 1.8 A |
| Stages | 1 |
| Motor Enclosure | TEFC |
| Pump rpm – 60 Hz | 1750 |
Liquid |
|
| Maximum Fluid Temperature | 212 °F |
Materials of Construction |
|
| Pump Body Material | Cast Iron |
| Impeller | Closed |
| Impeller Material | Bronze |
| Seal | Mechanical Seal |
Dimensions |
|
| Discharge | Threaded – FNPT |
| Discharge Diameter | 2 “ |
| Impeller Diameter | 4.5 “ |
| Suction Diameter | 3 “ |
| Suction | Threaded – FNPT |
| Pump Length | 16.99 “ |
| Product Weight | 62 lb |
| Pump Height | 9.86 “ |
| Pump Width | 10.46 “ |
Other |
|
| Warranty Standard Time | 12 Months |
Send us your model number and we will confirm fit, price, and availability.
