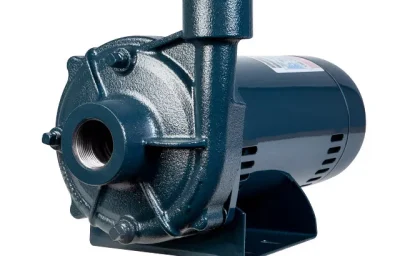

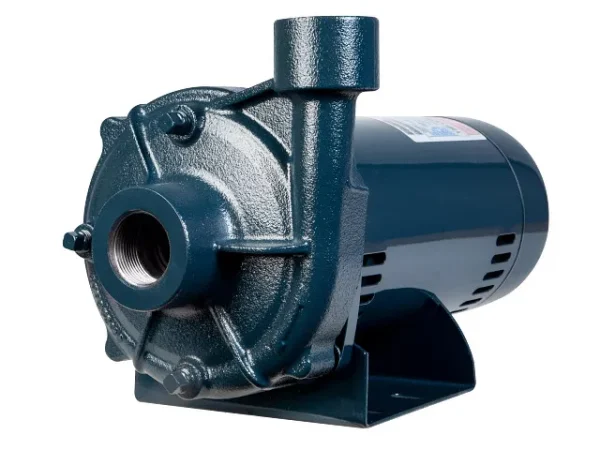

Franklin Electric 9646218115–A1526NM-7.5T2P3 Centrifugal Pump

9646218115 – A1526NM-7.5T2P3

The Franklin Electric 9646218115–A1526NM-7.5T2P3 Centrifugal Pump from the AG Series is a close-coupled, electric motor-driven pump delivering flows from 65 to 900 GPM. Featuring all-iron construction, enclosed impellers, mechanical shaft seals, and replaceable stainless steel shaft sleeves, this 7.5 hp, three-phase pump has a back pull-out design for easy service. Standard JM shaft motors offer ODP or TEFC enclosures to meet diverse site requirements.



Item: 9646218115
Model: A1526NM-7.5T2P3

Ratings

HP 7.5 hp
Frequency 60 Hz
Phases Three-Phase
Volts 230 VAC / 460 VAC
Stages 1
Motor Enclosure TEFC
Pump rpm – 60 Hz 3600

Liquid

Maximum Fluid Temperature 212 °F

Materials of Construction

Pump Body Material Cast Iron
Impeller Closed
Impeller Material Stainless Steel
Seal Mechanical Seal

Dimensions

Discharge Threaded – FNPT
Discharge Diameter 1.5 “
Impeller Diameter 6 “
Suction Diameter 2 “
Suction Threaded – FNPT
Pump Length 20.56 “
Product Weight 129 lb
Pump Height 9.88 “
Pump Width 13.74 “

Other

Warranty Standard Time 12 Months
