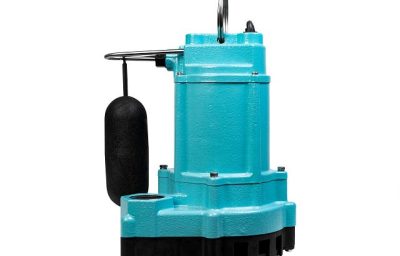

At the core of Little Giant’s effluent pumps product line-up, the 9EC Series effluent pump is giant in performance and reliability. Ideal for residential applications such as wastewater removal, dewatering, and water transfer.
Effluent wastewater has met its match in Little Giant’s 9EC Series effluent pump. Designed for continuous duty, the 9EC Series effluent pump features a 4/10 hp motor plus an epoxy-coated cast iron body and housing and multiple switch options for automatic operation. The energy-efficient low amp draw delivers cost savings on utility bills.
| Capacity | 70 gpm @ 5′ |
| Shut Off | 45′ (13.7 m) |
| Max. Liquid Temp. | 140 °F (60 °C) |
| Discharge | 1-1/2″ (38.1 mm) |
| Impeller | Thermoplastic Elastomer |
| Electrical | 115 V, 60 Hz, 7 A 208-230 V, 60Hz, 4 A |
| Operation | Automatic or Manual |
| Head | GPM (LPM) |
| 5′ | 70 (265) |
| 10′ | 63 (238.5) |
| 20′ | 45 (170.3) |
| 30′ | 22 (83.3) |
| 35′ | 7 (26.5) |
| Item | Model | Volts | Switch Type | Cord Length | Discharge |
|---|---|---|---|---|---|
| 509807 | 9EC-CIM | 208 VAC / 230 VAC | Manual | 20 ft | 1.5 “ |
| 509801 | 9EC-CIA-RF | 115 VAC | Piggyback Mechanical Float | 20 ft | 1.5 “ |
| 509802 | 9EC-CIA-RF | 115 VAC | Piggyback Mechanical Float | 30 ft | 1.5 “ |
| 509803 | 9EC-CIA-RF | 208 VAC / 230 VAC | Piggyback Mechanical Float | 20 ft | 1.5 “ |

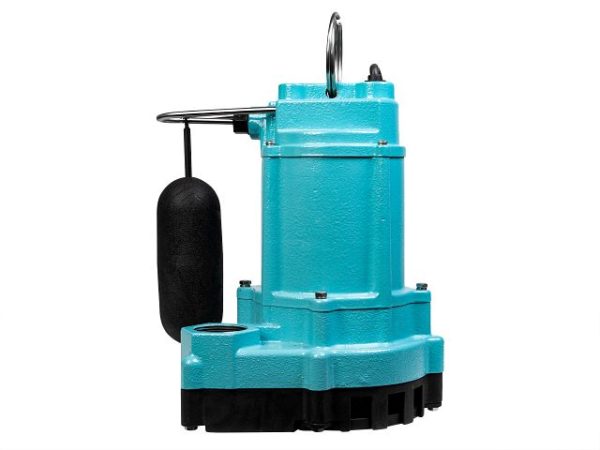

| 509804 | 9EC-CIA-SFS | 115 VAC | Integral Snap-Action Float | 30 ft | 1.5 “ |
| 509806 | 9EC-CIM | 115 VAC | Manual | 10 ft | 1.5 “ |
| 509808 | 9EC-CIM | 115 VAC | Manual | 30 ft | 1.5 “ |
