Sump & Light Effluent Pump

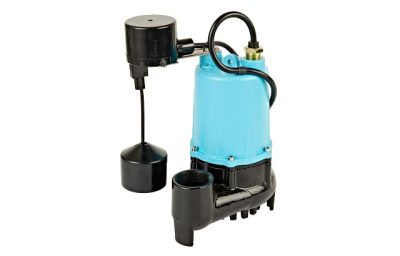

BSC33 Sump & Light Effluent Pump

The BSC33 Series sump or ultra-light effluent pump has the feature set for your new installation when you need a high performance cast iron pump that can also handle 3/8″ solids. Designed for entry level or builder grade solids handling sump or effluent applications such as new basements, crawlspaces, or septic systems.

Features & Benefits

  • 1/3 horsepower PSC motor with all cast iron construction keeps strength and output high while reducing temperatures for long life
  • Epoxy coated cast iron impeller
  • Piggyback tethered mechanical float switch makes for easy diagnostics, adjust ability, and switch replacement
  • Permanent intake teeth keep clogs to a minimum while maintaining the ability to pass 3/8″ solids

Overview

The BSC33 Series Sump and Light Effluent pump combines high performance and heavy duty construction features with light solids handling. The powerful 1/3 horsepower PSC motor moves water quickly to either protect your basement or operate your septic system. The simple and effective design is a great option for newly built basements and septic installations. The bottom volute intake teeth prevent debris from getting ingested and clogging the system while allowing 3/8″ solids to pass right through.

Click to rate this post!
[Total: 0 Average: 0]

Specifications

Capacity 50 gpm @ 5′
Shut Off 25′ (7.6 m)
Max. Liquid Temp. 95 °F (35 °C)
Discharge 1-1/2″ (38.1 mm)
Impeller Cast Iron
Electrical 115 V, 60 Hz, 4.3 A
Operation Automatic

Performance

Performance

Head GPM (LPM)
5′ 50 (189)
10′ 41 (155)
20′ 16 (61)

Order Information

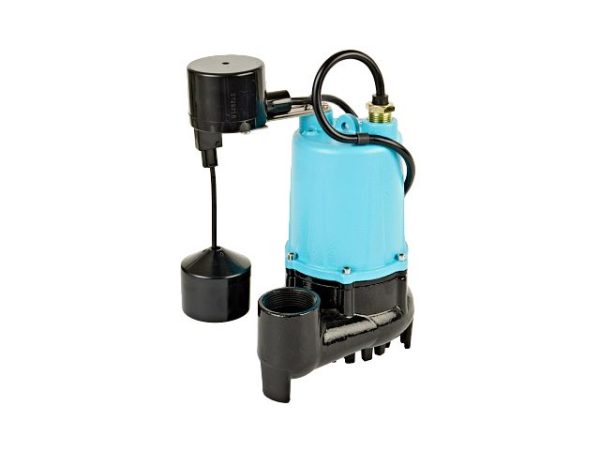

506254_BSC33V_FL_0008.psd




BSC33 Series Sump Pump

Item Model Volts Cord Length Discharge
506254 BSC33V 115 VAC 10 ft 1.5 “
506255 BSC33T 115 VAC 10 ft 1.5 “
506256 BSC33T 115 VAC 30 ft 1.5 “
