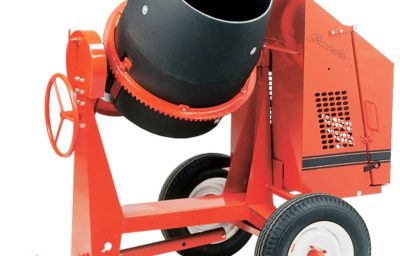

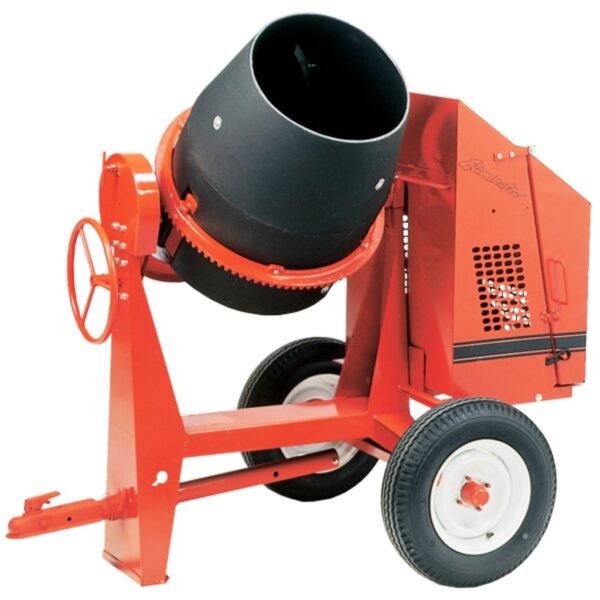

C9P Concrete Mixer

Crown Construction Concrete Mixer C9P Poly Drum

Call today to discuss you machine modifications requirements 800-575-1935

email us at  customerservice@kendisco.com

1 Bag Capacity about 240 lbs dry mix weight – 9 cubic feet – Towable

Poly Drum for easier drum cleaning

In agriculture, construction and even military applications, pintle hitches are the trusted product of specialized towing. This is because pintle mounts are notorious for their high weight capacity and simple layout. The basic pintle hitch follows a hook-and-loop design, with the hook mounted on the vehicle and the loop attached to the trailer. Because of their simplicity, pintle hitches are able to have thicker metal construction and more secure coupling

Click to rate this post!
[Total: 0 Average: 0]

Power Options

  • 1  1/2  Horsepower Baldor Electric Motor  1 Phase or  3 Phase
  • 8 Horsepower Honda GX240  Gasoline Engine
  • Ball Hitch or Pintle Hitch
  • Your Own Power Source – Less Power

Cast iron machined drive gears for smoother operation

Cast Iron Machined Drive Gears


Batch Capacity Bag 1 to 1/2 bag
Maxing capacity cu. ft(lt) 9cu. ft(260)
Total capacity cu. ft(lt) 12.3ce. ft(348)
Engine Power 8HP Honda
Drive System V-Belt to gears
Wheels Size 13 x 6.5 High speed
Overall Width in (cm) 50″(127)
Length (Tow pole in) in (cm) 83″(211)
Overall Height (cm) 67″(170)
Operating Weight Lbs (kg) 580 Lbs (263)
Drump wrap 1/8″ Steel
