CAST IRON INDUSTRIAL SPRINKLER PUMP

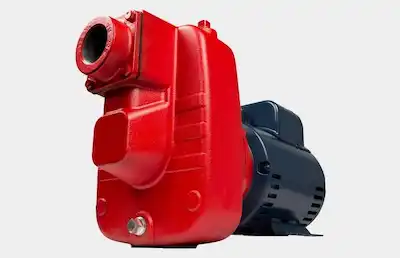

CAST IRON INDUSTRIAL SPRINKLER PUMP – RLHE- 300

APPLICATIONS

Ideal for both large residential properties and commercial lawn andturf sprinkling systems.

Image to be updated soon.

FEATURES & BENEFITS

  • Heavy-duty iron casing, diffuser, and seal plate for years ofservice and reliability
  • High efficiency impeller and diffuser for high-performance andefficient water flow
  • 2″ suction and 2″ discharge helps to prevent debris from cloggingimpellers and maintain full-flow performance
  • Self-priming to 25′ no additional priming required after initial fill
Click to rate this post!
[Total: 5 Average: 5]

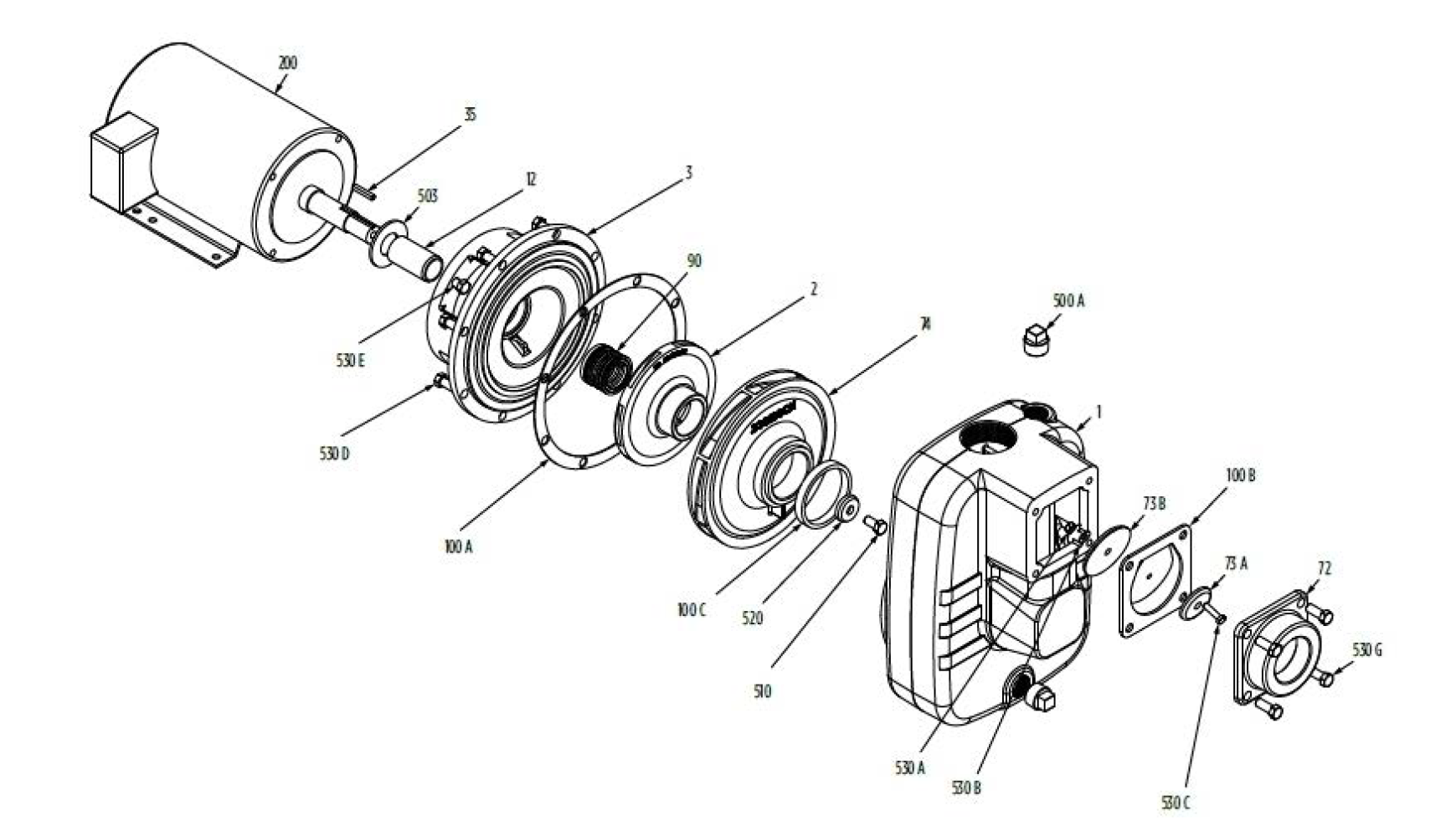

Red Lion RLHE-300 exploded parts View

RLHE-300 Exploded Parts View

Red Lion RLHE-300 Replacement Parts



Fig. No. Part Description Part No. Materials of Construction
3H 5H
1 Pump Case 305461011 Cast iron, ASTM-A48 CL30
2 Impeller 305453025 305453026 Cast iron, ASTM-A48 CL30
3 Motor Adapter 305461012 Cast iron, ASTM-A48 CL30
12 Mechanical Seal Shaft Sleeve 305458011 416 Stainless steel
35 Shaft Key 305453028 305451003 301 Stainless steel
72 Check Valve 305455010 305460018 Cast iron, ASTM-A48 CL30
73A Top Weight – Check Valve 305455011 Cast iron, ASTM-A48 CL30
73B Bottom Weight, Check Valve 305455012 Cast Iron, ASTM-A48 CL30
74 Diffuser 305460019 Cast Iron, ASTM-A48 CL30
90 Mechanical Shaft Seal 305457011 Carbon/ceramic FKM/stainless steel
100A Case Gasket 305461013 Nitrile
100B Flapper Valve 305454043 Neoprene
100C Square-Ring – Volute 305463131 Nitrile
200 Motor See Below Misc.
500 Pipe Plug 3/4″ (2 Req.) 305463050 CAD-plated steel
503 Water Slinger 305453030 Neoprene
510 Impeller Bolt 305461014 416 Stainless steel
520 Impeller Washer 305448013 305455014 417 Stainless steel
530A Flapper Nut 305463082 300 Stainless steel
530B Flapper Washer 305463084 300 Stainless steel
530C Flapper Bolt 305463080 Zinc-plated steel
530D Hex Bolts, Volute (8 pack) 305463064 Zinc-plated steel
530E Hex Bolt, Motor Adapter ( 4 req.) 305463120 305463121 Zinc-plated steel

Red Lion RLHE-300 Product Info

Model Item Number UPC HP Volts Amps Intake Discharge Discharge Pressure (PSI) Max PSI Max Flow GPM
10 20 30 40 45 50 55
Gallons Per Minute
RLHE-300 614481 0 10121 12461 5 3 115/230 32A @ 115V 16.1A @ 230V 2″ NPT 2″ NPT 124 110 95 77 67 54 36 59 124

Red Lion RLHE-300 Carton Specifications

Model Product Specifications Carton Cubes (cu ft) Max. Pallet Quantity Qty. per Layer Layers per Pallet
Length Width Height Weight (lbs)
RLHE-300 26.5″ 13.375″ 15″ 135 3.08 3 3 1
