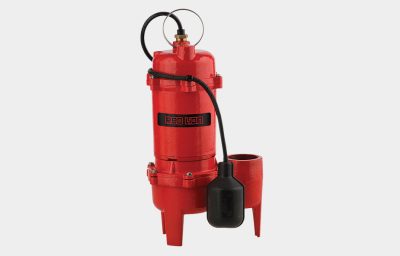

CAST IRON SEWAGE PUMP


cast-iron

APPLICATIONS

Ideal for high volume sewage, effluent, and general wastewaterapplications in places like parking lots, leaching fields, and laundryfacilities.

FEATURES & BENEFITS

  • Automatic submersible cast iron sewage pump
  • PSC dual bearing motor with overload protection
  • Capable of passing up to 2″ diameter semi-solids
  • Piggyback tethered float switch
  • 10′ power cord
  • Not suitable for pond use

feature-diagram

Click to rate this post!
[Total: 0 Average: 0]

Model

Item Number

UPC

HP

Amps/Volts

Disc.

Cord Length

Gallons Per Hour at Height

ShutOff

On/Off Levels

Min Basin Diameter

0'

5'

10'

15'

20'

RL-WC50TA

14942748

0 10121 14171 1

1/2

9/115

2" FNPT

10'

5600

4920

3720

1680

480

22'

On: 17.5" Off: 7.5"

18" or more

Model

Length

Width

Height

Weight (lbs)

Carton Cubes (cu ft)

Pallet Quantity

Qty. per Layer

Layers per Pallet

RL-WC50TA

8.5"

8.9"

18.4"

40

0.81

40

20

2
