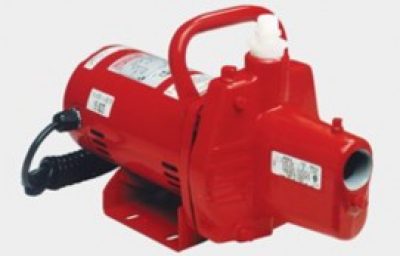

CAST IRON SPRINKLER UTILITY PUMP – RJSE-50

APPLICATIONS
Ideal for pressure boosting, sprinkler systems, and general purposeapplications where portability is important.
FEATURES & BENEFITS
- 115 Volt motor with 8′ power cord
- Rugged cast iron construction
- Steel handle for portability
- Self-priming to 25′
- Garden hose adapter included
Click to rate this post!
[Total: 2 Average: 5]
Model | Item Number | UPC | HP | Amps/Volts | Cord Length | Intake | Disc. | Suction Lift | Discharge Pressure (PSI) | Max PSI | Max Flow GPM | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | |||||||||||
Gallons Per Minute | |||||||||||||||||||
RJSE-50 | 614430 | 0 10121 12456 1 | 1/2 | 12.4/115 | 8′ | 1-1/4″ FNPT | 1″ FNPT | 5′ | 12.8 | 12.5 | 12.3 | 12.1 | 11.2 | 9.5 | 6.9 | 4.3 | 2 | 64.2 | 12.8 |
10′ | 11.5 | 11.3 | 11 | 10.8 | 10.4 | 8.5 | 6 | 3.4 | 1 | 62 | |||||||||
15′ | 9.8 | 9.7 | 9.6 | 9.5 | 9.4 | 7.3 | 4.7 | 2 | – | 59.9 | |||||||||
20′ | 8.3 | 8.1 | 7.8 | 7.7 | 7.6 | 5.7 | 3.5 | 1 | – | 57.7 | |||||||||
25′ | 5.6 | 5.55 | 5.5 | 5.4 | 5.3 | 4.1 | 2.3 | 0.2 | – | 55.5 |
Model | Length | Width | Height | Weight (lbs) | Carton Cubes (cu ft) | Pallet Quantity | Qty. per Layer | Layers per Pallet |
---|---|---|---|---|---|---|---|---|
RJSE-50 | 10″ | 20.25″ | 11.5″ | 36 | 1.35 | 32 | 8 | 4 |
