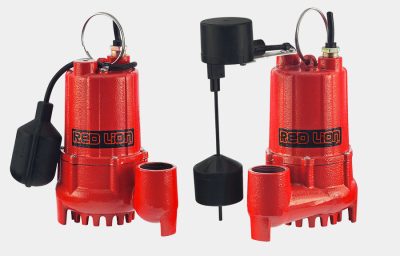

CAST IRON SUMP PUMPS
APPLICATIONS
Ideal for average to high-volume water and effluent removal in residential spaces such as basements, laundry facilities, and crawl spaces.
FEATURES & BENEFITS
- Automatic submersible sump pumps
- 1-1/2” FNPT discharge
- Piggyback float switch
- Clog-resistant design (1/2″ semi-solids handling)
- PSC motor
- 10′ cord
- Not suitable for pond use
Model | Item Number | UPC | HP | Switch | Amps/Volts | Cord Length | Gallons Per Hour at Height | Shut- Off | On/Off Levels | Min Basin Diameter | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0′ | 5′ | 10′ | 15′ | 20′ | ||||||||||
RL-SC33T | 14942744 | 0 10121 14167 4 | 1/3 | Tethered | 4.4/115 | 10′ | 3350 | 3000 | 2460 | 1860 | 960 | 25′ | On: 13″ Off: 5″ | 18″ or more |
RL-SC33V | 14942745 | 0 10121 14168 1 | 1/3 | Vertical | 4.4/115 | 10′ | 3350 | 3000 | 2460 | 1860 | 960 | 25′ | On: 7.25″ Off: 2.75″ | 15″ or more |
RL-SC50T | 14942746 | 0 10121 14169 8 | 1/2 | Tethered | 5.3/115 | 10′ | 4300 | 3840 | 3000 | 2220 | 1440 | 28′ | On: 13″ Off: 5″ | 18″ or more |
RL-SC50V | 14942747 | 0 10121 14170 4 | 1/2 | Vertical | 5.3/115 | 10′ | 4300 | 3840 | 3000 | 2220 | 1440 | 28′ | On: 7.25″ Off: 2.75″ | 15″ or more |
Model | Length | Width | Height | Weight (lbs) | Carton Cubes (cu ft) | Pallet Quantity | Qty. per Layer | Layers per Pallet |
|---|---|---|---|---|---|---|---|---|
RL-SC33T | 7.25″ | 8.75″ | 13″ | 20 | 0.48 | 75 | 25 | 3 |
RL-SC33V | 6.75″ | 8.75″ | 13″ | 21 | 0.44 | 84 | 28 | 3 |
RL-SC50T | 7.25″ | 8.75″ | 13″ | 20 | 0.48 | 75 | 25 | 3 |
RL-SC50V | 6.75″ | 8.75″ | 13″ | 21 | 0.44 | 84 | 28 | 3 |
