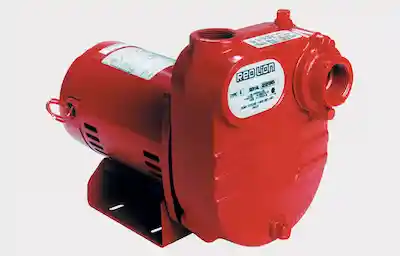

CAST IRON SURFACE EFFLUENT PUMPS

APPLICATIONS

Ideal for pumping liquid from septic tanks, as well as pumping out flooded basements, irrigation, and general dewatering.

FEATURES & BENEFITS

• Self-priming effluent pump with built-in check valve
• Rugged cast iron casing
• Heavy-duty motor, 115/230 Volts
• Cast iron impeller
• Not suitable for pond use

Exploded Parts

Replacement Parts

Item(s)	Description	Order Number
1, 2, 3, 4, 5, 6, 7	Replacement Check Valve	640199
1, 2, 3, 4, 5, 6, 7, 8	Check Valve Kit	640205
9, 11, 12, 14, 15, 16, 17, 20	Overhaul Kit	640209
14	Gasket Kit	640212
17, 18	Base Kit	640216

Product Info

Model	Item Number	UPC	HP	Volts	Discharge	Gallons Per Hour at Height				Shut-Off	Max Pressure PSI
						20'	30'	40'	50'
RL-S50	621810	0 10121 12643 5	1/2	115/230	1-1/4" FNPT	2700	1860	960	–	49'	21

Carton Specifications

Model	Length	Width	Height	Weight (lbs)	Carton Cubes (cu ft)	Pallet Quantity	Qty. per Layer	Layers per Pallet
RL-S50	10.25"	20"	11.75"	42	1.39	32	8	4
