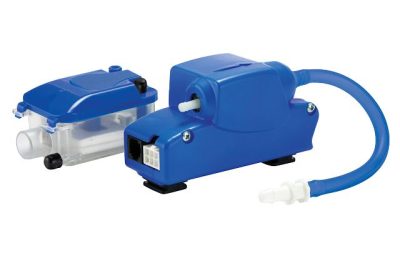

Condensate needs to be drained from your HVAC equipment to maintain proper function. The EC-1-DV Series of mini-split condensate pump is an automatic condensate removal system designed to remove the water from a ductless mini-split air conditioner evaporative coil when gravity-feed drainage is not possible or practical. Series models include improved noise reduction, reliable solid-state switching technology, and easy to install mounting brackets to create a pump that benefits contractors, installers, and end-users.

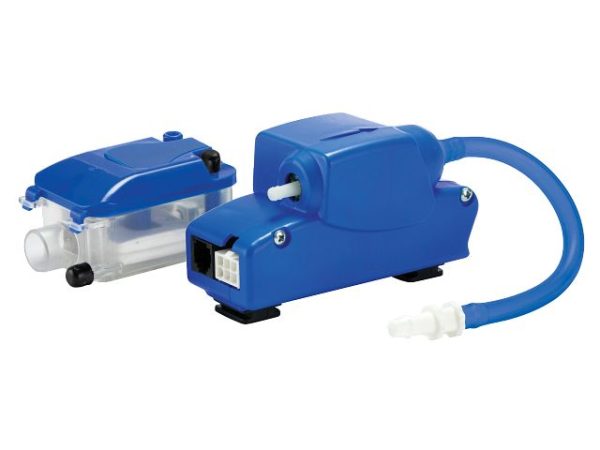

The Little Giant EC-1-DV mini-split condensate pump is used to remove condensate from wall mount and ductless mini-split cooling systems up to 34,000 BTU. It is designed to accommodate multiple electrical requirements within one pump. The DV suffix indicates that the pump is capable of operating from a wide range of supply voltage to maintain consistent pump performance.
| Capacity | 2.5 gph @ 1′ |
| Shut Off | 33′ (10 m) |
| Max. Liquid Temp. | 140 °F (60 °C) |
| Discharge | 1/4″ (6 mm) I.D. Pump Discharge Outlet |
| Electrical | 100-240 V, 50/60 Hz, 0.18 A |
| Operation | Automatic |
| Head | GPH (LPH) |
| 1′ | 2.5 (9.5) |
| 5′ | 1.8 (6.8) |
| 10′ | 1.5 (5.7) |
| 20′ | 1.2 (4.5) |
| Item | Model | Volts | Shut-Off | Safety Switch | Tubing Included |
|---|---|---|---|---|---|
| 553507 | EC-1-DV | 110-240 VAC | 33 ft | No | No |
