Control HVAC condensate on ductless air conditioning units while keeping pumping equipment tucked safely out of view. The EC-1U-DV brings the performance of our EC-1-DV Series of mini-split condensate pump to a slim undermount unit that installs easily and neatly underneath equipment. Built for reliable and quiet operation, the automatic condensate removal system works continuously to remove water from any ductless mini-split air conditioner evaporative coil when gravity-feed drainage is not possible or practical.

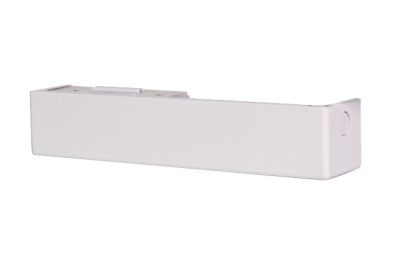

The Little Giant EC-1U-DV undermount mini-split condensate pump utilizes a compact housing that allows it to be installed discreetly underneath mini-split wall HVAC units. This sleek design assures a cleaner look without sacrificing critical condensate removal performance.
| Capacity | 2.5 gph @ 1′ |
| Shut Off | 33′ (10 m) |
| Max. Liquid Temp. | 140 °F (60 °C) |
| Discharge | 1/4″ (6 mm) I.D. Pump Discharge Outlet |
| Electrical | 100-240 V, 50/60 Hz, 0.18 A |
| Operation | Automatic |
| Head | GPH (LPH) |
| 1′ | 2.5 (9.5) |
| 5′ | 1.8 (6.8) |
| 10′ | 1.5 (5.7) |
| 20′ | 1.2 (4.5) |
| Item | Model | Volts | Shut-Off | Safety Switch | Tubing Included |
|---|---|---|---|---|---|
| 553527 | EC-1U-DV | No | No |
