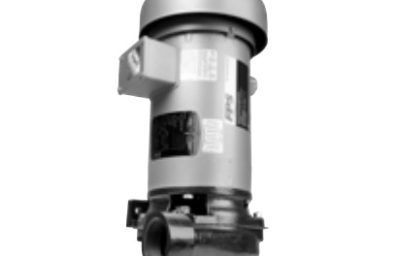

Franklin Electric End Gun Booster Pump Repair Parts Breakdown
Supplying Water Pump Parts Since 1991
Shipping Across the U.S. & Canada
Same-Day Shipping on Eligible Orders
| Figure No. | Part Description | Part No. | Materials of Construction |
|---|---|---|---|
| 1 | Volute w/plugs | 305462047 | Cast Iron, ASTM-A48 CL30 |
| 2 | Impeller Kit | 305462048 | Various |
| 3 | Motor Bracket | 305462049 | Cast Iron, ASTM-A48 CL30 |
| 4 | Studs (4 pack) | 305462224 | CAD-Plated Steel |
| 5 | Motor Bracket Bolts | 305462051 | CAD-Plated Steel |
| 6 | Motor (56-J) | See Motor Section | Misc. |
| 7 | Lock Washer (4 pack) | 305463092 | CAD-Plated Steel |
| 8 | Nut (4 pack) | 305463062 | CAD-Plated Steel |
Send us your model number and we will confirm fit, price, and availability.
