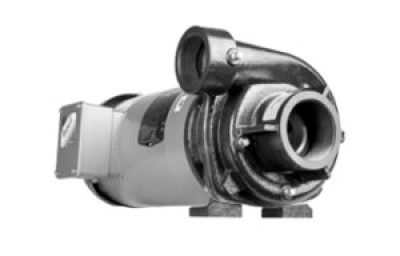

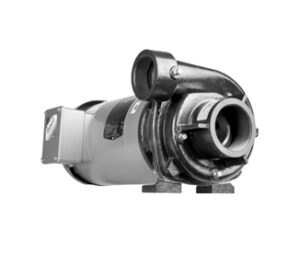

| CLOSE-COUPLED FBC SERIES REPLACEMENT MOTORS | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Frame Size | RPM | Enclosure | Phase | Volts | HP | Pump Model No. | Motor Part No. | Inverter Rated | FLA | SFA |
|
56J |
1800 |
TEFC |
1 |
115/230 |
1/3 |
FBCL-25SE |
JL3501A |
– |
6/3 |
6.8/3.4 |
|
115/230 |
1/3 |
FBCL-33SE |
JL3501A |
– |
6/3 |
6.8/3.4 |
||||
|
115/230 |
1/2 |
FBCL-50SE |
JL3504A |
– |
7.4/3.7 |
8.2/4.1 |
||||
|
3 |
230/460 |
1/3 |
FBCL-25TE |
JM3458 |
No |
1.6/.8 |
1.8/.9 |
|||
|
230/460 |
1/3 |
FBCL-33TE |
JM3458 |
No |
1.6/.8 |
1.8/.9 |
||||
|
230/460 |
1/2 |
FBCL-50TE |
JM3461 |
No |
2/1.2 |
2.4/1.2 |
||||
|
3600 |
ODP |
1 |
115/230 |
1-1/2 |
FBC-150S |
JL1313A |
– |
13/6.5 |
17/8.5 |
|
|
115/230 |
2 |
FBC-200S |
JL1317A |
– |
26/13 |
27.6/13.8 |
||||
|
230 |
3 |
FBC-300S |
JL1323A |
– |
13 |
14.8 |
||||
|
3 |
230/460 |
1-1/2 |
FBC-150T |
JM3120 |
No |
4.4/2.2 |
5.4/2.7 |
|||
|
230/460 |
2 |
FBC-200T |
JM3155 |
No |
5.4/2.7 |
6.2/3.1 |
||||
|
230/460 |
3 |
FBC-300T |
JM3158 |
No |
8/4 |
9/4.5 |
||||
|
3600 |
TEFC |
1 |
115/230 |
1-1/2 |
FBC-150SE |
JL3513A |
– |
16.6/8.8 |
16.6/8.8 |
|
|
115/230 |
2 |
FBC-200SE |
JL3515A |
– |
23/11.5 |
23/11.5 |
||||
|
230 |
3 |
FBC-300SE |
204219 |
– |
12 |
13.8 |
||||
|
3 |
230/460 |
1-1/2 |
FBC-150TE |
EJM3550 |
Yes |
3.8/1.9 |
4.8/2.4 |
|||
|
230/460 |
2 |
FBC-200TE |
EJM3555 |
Yes |
5/2.5 |
5.8/2.9 |
||||
|
230/460 |
3 |
FBC-300TE |
EJM3559 |
Yes |
7.2/3.6 |
8.2/4.1 |
||||
