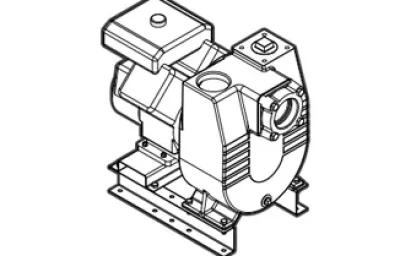

| Fig. No. |
Part Description |
FMIG30-13H |
Part No. |
FMIG40-18K/ FMIG40-27K |
Materials of Construction |
| 1 |
FMIG Pump Case |
305455002 |
305455003 |
Cast Iron, ASTM-A48 CL30 |
| 2 |
FMIG Impeller |
See Table 1 |
Cast Iron, ASTM-A48 CL30 |
| 3 |
FMIG Motor Adapter |
305456001 |
305456002 |
Cast Iron, ASTM-A48 CL30 |
| 12 |
FMIG Mechanical Seal Shaft Sleeve |
305456003 |
305456004 |
416-Stainless steel |
| 35 |
FMIG Impeller Shaft Key |
305456005 |
305456006 |
316-Stainless steel |
| 70 |
FMIG Base, Engine Frame |
305456007 |
305455018 * |
CRS |
| 71 |
FMIG Wear Plate |
305455008 |
305455009 |
CRS |
| 72 |
FMIG Suction Flange |
305454019 |
305454020 |
CRS |
| 73A |
FMIG Top Weight- Check Valve |
305454022 |
305454023 |
Cast Iron, ASTM-A48 CL30 |
| 73B |
FMIG Bottom Weight – Check Valve |
305454025 |
Cast Iron, ASTM-A48 CL30 |
| 90 |
FMIG Mechanical Shaft Seal |
305463043 |
305463044 |
Carbon/Ceramic/FKM/316SS |
| 100A |
FMIG Case Gasket |
305454041 |
305454042 |
NA60 |
| 100B |
FMIG Flapper Valve |
305454044 |
305454045 |
Neoprene |
| 100C |
FMIG O-ring – Motor Bracket (4-Pack) |
305463087 |
N/A |
FKM |
| 200 |
FMIG Engine |
See Table 1 |
Misc. |
| 500A |
FMIG Pipe Plug 3″ (3-Pack) |
305463076 |
CAD-plated steel |
| 500B |
FMIG Pipe Plug 3/4″ (3-Pack) |
305463050 |
CAD-plated steel |
| 503 |
FMIG Water Slinger |
305456009 |
305456010 |
Neoprene |
| 510 |
FMIG Impeller Hex Cap Screw |
305463088 |
305463211 |
18-8 Stainless steel |
| 520 |
FMIG Impeller Washer |
305456011 |
305456012 |
300-Series stainless steel |
| 531 |
FMIG Threaded Stud (6-Pack) |
305463089 |
Zinc-plated steel |
| 530A |
FMIG Screw, Flat Head Slotted (6-Pack) |
305463079 |
Zinc-plated steel |
| 530B |
FMIG Bolt, Flapper |
305463080 |
305463058 |
300-Series stainless steel |
| 530C |
FMIG Hex Nuts – Adapter/Case (6-Pack) |
305463059 |
Zinc-plated steel |
| 530D |
FMIG Lockwasher – Adapter/Case (6-Pack) |
305463060 |
Zinc-plated steel |
| 530E |
FMIG Nut, Flapper |
305463082 |
305463062 |
300-Series stainless steel |
| 530F |
FMIG Washer, Flapper |
305463084 |
N/A |
300-Series stainless steel |
| 530G |
FMIG Valve Hex Cap Screw (4-Pack) |
305463085 |
305463086 |
Zinc-plated steel |
| 530H |
FMIG Lockwasher – Base/Engine (8-Pack) |
305463032 |
Zinc-plated steel |
| 530J |
FMIG Hex Nut – Base/Engine (8-Pack) |
305463033 |
Zinc-plated steel |
| 530K |
FMIG Hex Bolt – Base/Engine (4-Pack) |
305463090 |
305463179 |
Zinc-plated steel |
| 530L |
FMIG Washer – Base/Engine (4-Pack) |
305454046 |
Zinc-plated steel |
| 530M |
FMIG Hex Bolt – Motor/Adapter (4-Pack) |
305463091 |
305463162 |
Zinc-plated steel |
| Not Shown |
FMIG Lockwasher – Motor/Adapter |
N/A |
305463212 |
Zinc-plated steel |
| Not Shown |
FMIG Flapper Valve Assembly Kit |
305455021 |
305455022 |
Various |
