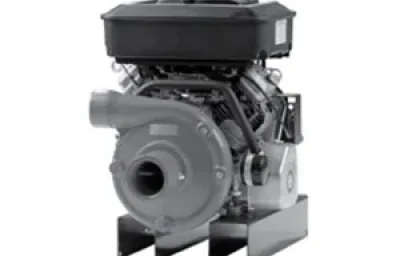

| Fig. No. |
Description |
Part No. |
Materials |
| 1 |
FNG-23V Pump Case |
305457001 |
Cast Iron, ASTM-A48 CL30 |
| 2 |
FNG-23V Impeller |
305457012 |
Cast Iron, ASTM-A48 CL30 |
| 3 |
FNG-23V Motor Adapter |
305457003 |
Cast Iron, ASTM-A48 CL30 |
| 4 |
FNG-23V Wear Ring (Suction) |
305457004 |
SAE 660 Brass |
| 12 |
FNG-23V Shaft Sleeve, Mechanical Seal |
305457005 |
416 Stainless Steel |
| 70 |
FNG-23V Base, Engine Frame |
305459024 |
Various |
| 76 |
FNG-23V Battery Holder Assembly |
305457008 |
Various |
| 82 |
FNG-23V Muffler |
305457013 |
Various |
| 90 |
FNG-23V Mechanical Shaft Seal |
305457011 |
Carbon / Ceramic FKM / 316SS |
| 100 |
FNG-23V Case Gasket |
305457009 |
NA60 |
| 200 |
FNG-23V Engine B/S 23 hp |
201942 |
Misc. |
| 500A |
FNG-23V Pipe Plug 1/4″ (3 Req.) |
305463020 |
Cad-Plated Steel |
| 500B |
FNG-23V Pipe Plug 3/8″ (1 Req.) |
305463175 |
Cad-Plated Steel |
| 503 |
FNG-23V Water Slinger |
305457010 |
Neoprene |
| 530A |
FNG-23V Hex Bolt – Volute (8 Req) 7/16-14 |
305463183 |
Zinc-Plated Steel |
| 530B |
FNG-23V Hex Nut – Engine (8-Pack) |
305463033 |
Zinc-Plated Steel |
| 530C |
FNG-23V Lockwasher – Engine (8-Pack) |
305463135 |
Zinc-Plated Steel |
| 530D |
FNG-23V Hex Bolt – Motor Base (4 Req.) |
305463111 |
Zinc-Plated Steel |
| 530E |
FNG-23V Washer – Motor Base (4 Req.) |
305463247 |
Zinc-Plated Steel |
| 530F |
FNG-23V Lockwasher – Motor Base (4 Req.) |
305463092 |
Zinc-Plated Steel |
| 530G |
FNG-23V Hex Nut – Motor Base (4 Req.) |
305463062 |
Zinc-Plated Steel |
| 531 |
FNG-23V Threaded Stud (4 Req.) |
305463093 |
Zinc-Plated Steel |
| 532 |
FNG-23V Spacer (4-Pack) |
305463215 |
Cast Iron |
