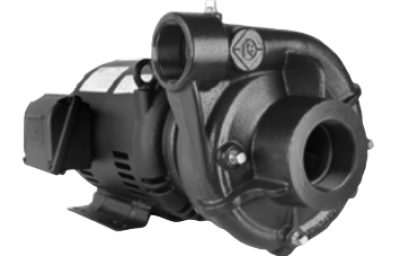

Franklin Electric Centrifugal Close Coupled AG Series


AG series

The AG series pumps are close-coupled, electric motor driven pumps producing flows ranging up to 900 gallons per minute. They feature all-iron construction, enclosed impellers, mechanical shaft seals, replaceable stainless steel shaft sleeves and are all back pull-out design for ease of service. Standard JM shaft motors are available with either an ODP or TEFC enclosure and either single or three phase standard voltages to fit your site requirements.

FEATURES

  • 9 pump families covering the most popular hydraulic performance ranges
  • Designed for increased efficiency and performance
  • Threaded NPT and 125# flanged connection options
  • Flow ranges up to 900 gpm
  • NEMA standard JM and JP shaft motors; 1800 and 3600 rpm; ODP and TEFC enclosures available
  • Back pull-out design
  • Standard carbon/ceramic/nitrile/316 stainless steel mechanical seals or packing-box option
  • 416 stainless steel shaft sleeves
  • ASTM-A48 CL30 cast iron volute and impellers
  • CA6NM stainless steel impellers on A1.5×2-6 & A2.5×4-10
  • Volute: Factory horizontal discharge with 8 optional positions

SPECIFICATIONS

  • Capacities to 900 gpm
  • Heads to 325 feet
  • 150 psi maximum working pressure
  • 212 °F maximum temperature

APPLICATIONS

  • Pressure Boosting
  • Water Supply and Treatment
  • Wash Down
  • Water Recirculation
  • Irrigation
