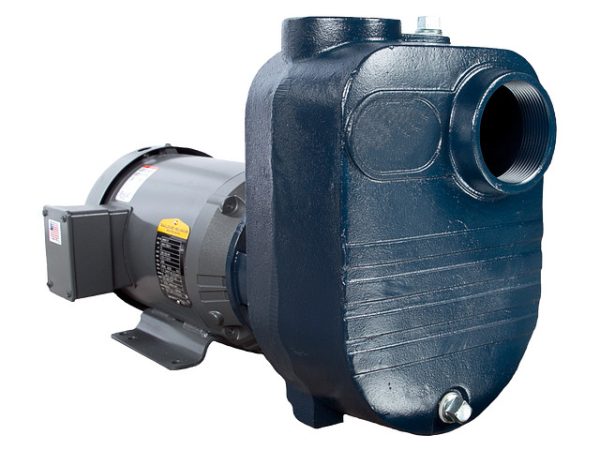

The Franklin Electric FBSEFL-075-TE Nodel# 92934007 is a 3/4 HP three-phase close-coupled self-priming pump built for tough jobs. Capable of handling liquids at temperatures up to 212°F, it handles fertilizer, salt water, and dirty water with ease. The cast iron body and Totally Enclosed Fan Cooled motor make it the reliable choice for irrigation, construction, and industrial applications.
| Item: | 92934007 |
| Model: | FBSEFL-075-TE |
| Ratings | |
| HP 60Hz | 3/4 hp |
| Frequency | 60 Hz |
| Phases | Three-Phase |
| Volts | 230 VAC / 460 VAC |
| Amps at 230 Volts | 3.4 A |
| Operation | |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Liquid | |
| Maximum Fluid Temperature | 212 °F |
| Materials of Construction | |
| Pump Body Material | Cast Iron |
| Impeller | Semi-open |
| Impeller Material | Cast Iron |
| Seal Material | Carbon/Ceramic, FKM, 300 series S.S. |
| Seal | Mechanical Seal |
| Dimensions | |
| Discharge | Threaded – FNPT |
| Discharge Diameter | 3 “ |
| Suction Diameter | 3 “ |
| Suction | Threaded – FNPT |
| Pump Length | 21.51 “ |
| Product Weight | 100 lb |
| Pump Height | 14 “ |
| Pump Width | 11.46 “ |
| Other | |
| Warranty Standard Time | 12 Months |
