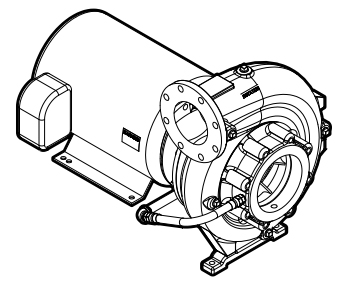

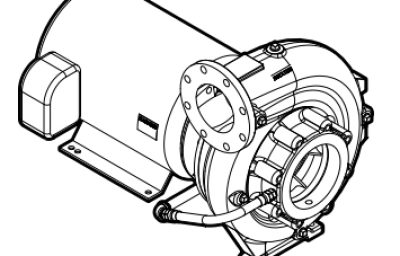

Franklin Electric Surface Pump Centrifugal I Series 14-INCH


14-INCH

FEATURES

  • Volute: Ductile iron for heavy-duty service; back pullout design; can be rotated for ease of installation
  • Impeller: Enclosed design for high efficiency; configured for superior NPSH characteristics; ductile iron construction with external balance lines for reduced bearing load
  • Seal: Packed box with lantern ring or mechanical seal with silicon carbide/silicon carbide; FKM elastomers; 18-8 series stainless steel components
  • Motor: 1200 and 1800 rpm available; standard JP frames; 1800 7.5-50 hp; all others use custom shaft JP frames; ODP and TEFC motors available
  • Mounting: Vertical or horizontal
  • Replaceable shaft sleeve and bronze wear-rings
  • Casing jack-out holes for ease of service
  • Two-piece stainless steel packing gland

SPECIFICATIONS

  • Capacities to 7,000 gpm
  • Heads to 375 feet
  • 350 psi maximum working pressure
  • 212 °F maximum temperature
  • Clockwise rotation when viewed from motor end
  • Class 150 flanged pipe connections

APPLICATIONS

  • Irrigation
  • Commercial
  • Construction
  • Municipal
  • Mining
  • Industrial

Discharge

Suction

3″

5″

4″

6″

6″

6″

6″

8″

10″

10″
