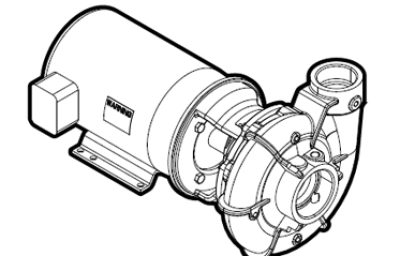

Franklin Electric Surface Pump Centrifugal I Series 9-INCH

request a quote

FEATURES

  • Volute: Heavy-duty cast iron construction; back pullout design; can be rotated for ease of installation
  • Impeller: Enclosed, cast iron design for high efficiency; hydraulically balanced for reduced bearing load
  • Seal: Packed box with lantern ring or mechanical seal with carbon/ceramic faces; nitrile elastomers; 300 series stainless steel components
  • Motor: 1800 rpm, JP standard frame; available in ODP or TEFC enclosures
  • Mounting: Vertical or horizontal
  • Replaceable shaft sleeve
  • Casing jack-out holes for ease of service
  • Two-piece stainless steel packing gland

SPECIFICATIONS

  • Capacities to 800 gpm
  • Heads to 300 feet
  • 250 psi working pressure
  • 212 °F maximum temperature
  • Clockwise rotation when viewed from motor end
  • 3×4 NPT pipe connections

Discharge

Suction

3″

4″

APPLICATIONS

  • Irrigation
  • Commercial
  • Construction
  • Municipal
  • Light Industrial
  • General Services
Click to rate this post!
[Total: 0 Average: 0]

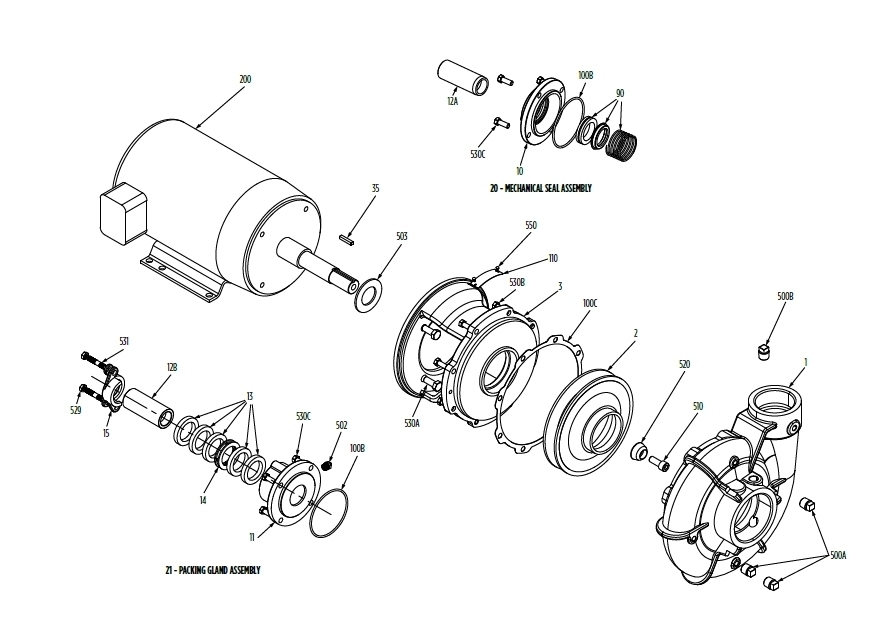

I Series 9-INCH Exploded PARTS

material-and-parts

I Series 9-INCH REPAIR AND REPLACEMENT PARTS 3 X 4 - 9

Fig. No.

Part Description

Part No.

Materials of Construction

1

Volute Case

305462001

Cast Iron, ASTM-A48 CL 30

2

Impeller, 9″ trim

305462056

Cast Iron, ASTM-A48 CL 30

3

Motor Bracket (8.5AK)

305462002

Cast Iron, ASTM-A48 CL 30

10

Mechanical Seal Box

305448004

Cast Iron, ASTM-A48 CL 30

11

Packing Seal Box

305448005

Cast Iron, ASTM-A48 CL 30

12A

Mechanical Seal Shaft Sleeve

305462005

416 stainless steel

12B

Packing Shaft Sleeve

305462004

416 stainless steel

13

Packing Ring Set

305448009

Graphite/cotton

14

Lantern Ring

305448010

PTFE

15

Packing Gland (2 piece)

305448011

316 stainless steel

20

Mechanical Seal Assembly

305462053

Misc.

21

Packing Gland Assembly

305462054

Misc.

35

Key, Impeller Shaft

305450006

316 stainless steel

90

Mechanical Shaft Seal

305463012

Carbon/ceramic/nitrile/316 stainless steel

100B

O-ring, Packing/Seal Box

305463013

Nitrile

100C

Volute Case Gasket

305463138

NA60

110/550

FPS Nameplate and Drive Screws

305463005

Stainless steel

200

Motor

See motor section

500A

Pipe Plug (4 pack)

305463020

CAD-plated steel

500B

Pipe Plug (4 pack)

305463144

CAD-plated steel

502

Grease Zerk Straight

305463015

CAD-plated steel

503

Water Slinger

305447008

Neoprene

510

Hex Cap Screw, Impeller

305463014

316 stainless steel, grade 5

520

Washer, Impeller

305448014

300 Series stainless steel

529

Nut, Packing Gland (4 pack)

305463007

Zinc-plated steel

530A

Hex Cap Screw, Motor Bracket (12 pack)

305463016

Zinc-plated steel

530B

Hex Cap Screw, Volute Case (12 pack)

305463202

Zinc-plated steel

530C

Seal Box Bolts (4 req.)

305463010

Zinc-plated steel, grade 6

531

Stud, Packing Gland (4 pack)

305463008

Zinc-plated steel

I Series 9-INCH ORDERING INFORMATION

Size

HP-RPM

Phase

Seal

9″ Nominal Impeller Diameter – Close Coupled

ODP

Order No. Model Description Wt. (lbs)

Order No.

TEFC

Model Description

Wt. (lbs)

3 x 4 – 9

7.5-1750

3

Packing

70040309105

7XS439-CCPHGC

240

72040309105

7XS439-CTPHGC

276

7.5-1750

1

Packing

74040309105

7XS439-CCPHGC

240

Not currently available

10-1750

3

Packing

70040309115

10XS439-CCPJDJ

255

72040309115

10XS439-CTPJDJ

293

10-1750

1

Packing

74040309115

10XS439-CCPJDJ

255

Not currently available

15-1750

3

Packing

70040309125

15XS439-CCPKAA

320

72040309125

15XS439-CTPKAA

368

7.5-1750

3

Mechanical

71040309100

7XS439-CCMHGC

240

73040309100

7XS439-CTMHGC

276

7.5-1750

1

Mechanical

74040309100

7XS439-CCMHGC

240

Not currently available

10-1750

3

Mechanical

71040309110

10XS439-CCMJDJ

255

73040309110

10XS439-CTMJDJ

293

10-1750

1

Mechanical

74040309110

10XS439-CCMJDJ

255

Not currently available

15-1750

3

Mechanical

71040309120

15XS439-CCMKAA

320

73040309120

15XS439-CTMKAA

368

I Series 9-INCH IMPELLER TRIM

Example: 15XS4313-CCMLBD = 10.13″ trim

A

0

D

3

G

6

K

9

N

12

B

1

E

4

H

7

L

10

P

13

C

2

F

5

J

8

M

11

Q

14
NOTE: Impeller trim diameter designated by the last three digits of the model description

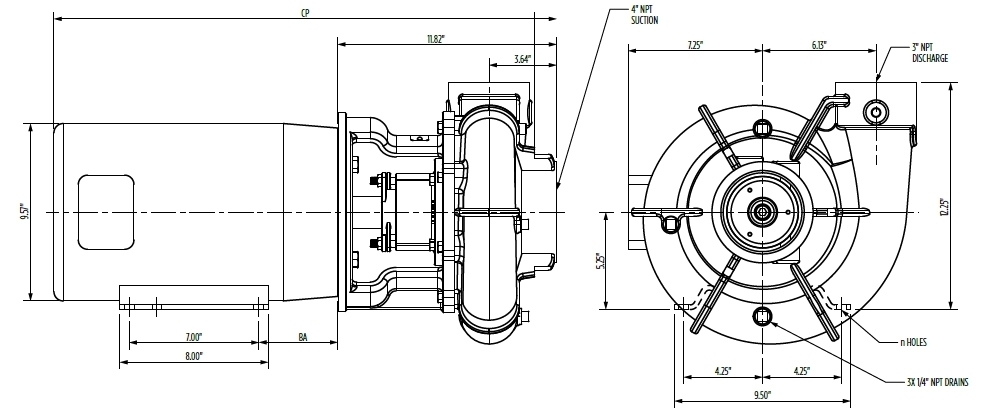

I Series 9-INCH DIMENSIONS

dimension

Size

HP

Phase

Impeller Trim (in)

Dimensions (in)

CP BA

3 x 4 – 9

7.5

3

7.62

24.38

4.25

1

7.62

25.51

4.50

10

3

8.38

24.38

4.25

1

8.38

26.63

4.50

15

3

9.00

27.13

4.25
NOTE: Dimensions are for estimating purposes only
9-Inch | I Series | Close-Coupled | Centrifugal | Ag/Industrial/Municipal | Surface Pumps | Franklin Electric |  Pump Replacement Parts | Pump Order information | Pump Dimensions | Pump Exploded Parts view | Ken’s Distributing Company

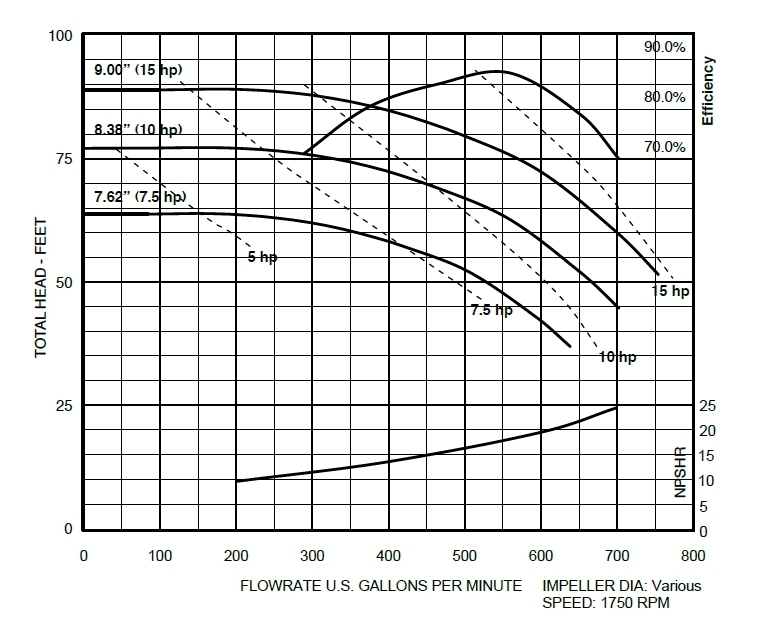

I Series 9-INCH PERFORMANCE CURVE
