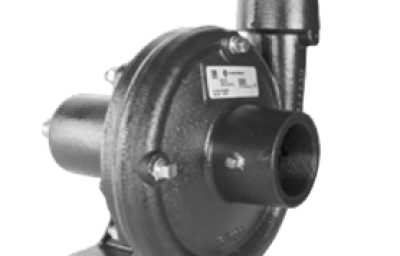

Franklin Electric Surface Pumps Centrifugal Frame Mount FCT

FEATURES

  • Volute: Cast iron construction; can be rotated for ease of installation; tapped openings provided for venting and draining
  • Impeller: 1″ x 1-1/4″ and 1-1/4″ x 1-1/2″ glass-filled modified PPO construction; 2″ x 2″ cast iron construction; enclosed design for high efficiency
  • Mechanical Seal: Standard with carbon/ceramic faces; nitrile elastomers; 300-series stainless steel components
  • Bearing Frame: For belt or direct drive
  • Mounting: Vertical or horizontal position

SPECIFICATIONS

  • Capacities to 175 gpm
  • Heads to 150 feet
  • 120 psi maximum working pressure
  •  212 °F maximum temperature
  • Clockwise rotation when viewed from drive end
  • NPT pipe connections

APPLICATIONS

  • Water Circulation
  • Booster Service
  • Liquid Transfer
  • Spraying Systems
  • Jockey Pump
  • General Service
Click to rate this post!
[Total: 0 Average: 0]

FCT Exploded Parts

FAOT-material-parts

FCT MATERIALS AND PARTS

Fig. No.

Part Description

FACT-5

Part No.

FACT-6

FACT-8

Materials of Construction

1

 Volute Case

305453008

305453042

305459001

Cast iron, ASTM-A48 CL30

2

Impeller

305453009

305453043

305453047

Modified PPO

3

Transmission Housing

305453010

305453044

N/A

Cast iron, ASTM-A48 CL30

3

Transmission Housing

N/A

N/A

305453048

5

Shaft/Bearing Assembly

305453011

N/A

Misc.

Not Shown

Shaft

N/A

N/A

305453049

Low-carbon steel C1018120

Not Shown

Ball Bearing (2-pack)

N/A

N/A

305463180

Misc.

30

Retaining Ring

305463027

305463181

Steel

35

Shaft Key

305463028

305453028

301 stainless steel

90

Mechanical Shaft Seal

305463176

305463182

Carbon/ceramic/nitrile/316 stainless steel

100

Gasket/O-ring

305453012

305453045

305463004

NA60/nitrile

503

Water Slinger

305453013

305453050

Neoprene

Not Shown

Pipe Plug 1/8 (3-pack)

N/A

N/A

305463009

CAD-plated steel

500A

Pipe Plug (3-pack)

305463020

CAD-plated steel

530A

Bracket Threaded Stud (4-pack)

305463031

Zinc-plated steel

530B

Lockwasher (8-pack)

305463032

Zinc-plated steel

530C

Hex Nut (8-pack)

305463033

Zinc-plated steel

Not Shown

Impeller Hex Cap Screw

N/A

N/A

305463056

Zinc-plated steel

Not Shown

Impeller Washer

N/A

N/A

305463063

Zinc-plated steel

Not Shown

Sleeve

N/A

N/A

305453051

304 stainless steel

Not Shown

Seal Plate

N/A

N/A

305453052

Cast iron, ASTM-A48 CL30

Not Shown

Lip Seal

N/A

N/A

305463139

Nitrile

FCT ORDERING INFORMATION

Model

Dis. x Suc. (NPT)

Rotation

Shaft Sealing

Order No.

Wt. (lbs)

FACT-5

1″ x 1-1/4″

Clockwise*

Mechanical Seal

90252005

18

FACT-6

1-1/4″ x 1-1/2″

90252006

19

FACT-8

2″ x 2″

90252008

21

FCT DIMENSIONS

FCT-Dimension

Model

Dis. x Suc. (NPT)

CP

DD

E

F

Dimensions (in)

L O

X

Y

ZC

ZO

FACT-5

1″ x 1-1/4″

8.87

3.62

4.25

2.37

9.37

4.75

2.62

4.00

3.75

FACT-6

1-1/4″ x 1-1/2″

9.25

4.00

4.25

2.50

10.87

6.25

3.25

5.75

4.75

FACT-8

2″ x 2″

11.37

4.62

4.00

2.00

2.87

11.00

6.25

3.25

5.75

4.75

FCT PERFORMANCE curve

FCT-performance
