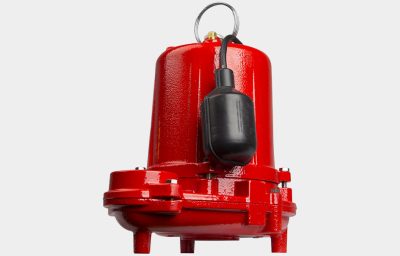

Red Lion Heavy-duty Cast Iron Effluent Pump, Automatic, 1/3 HP, 115V
Supplying Water Pump Parts Since 1991
Shipping Across the U.S. & Canada
Same-Day Shipping on Eligible Orders
APPLICATIONS
Ideal for liquid effluent pumping applications, as well as light commercial applications with up to 11/16″ diameter solids
FEATURES & BENEFITS
- 1/3 hp 115 Volt thermal overload protected continuous duty motor
- Rugged cast iron construction
- Heavy-duty cast iron pump base and impeller
- Automatic piggyback float switch
- Not suitable for pond use
Product Info
| Model | Item Number | UPC | HP | Amps/Volts | Discharge | Cord Length | Gallons Per Hour at Height | ShutOff | Min Basin Diameter | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5′ | 10′ | 15′ | 20′ | 25′ | |||||||||
| RL31EA | 620040 | 0 10121 12134 8 | 1/3 | 10.4/115 | 2″ NPT | 20′ | 6300 | 5400 | 4200 | 2700 | 900 | 28′ | 18″ or more |
Carton Specifications
| Model | Length | Width | Height | Weight (lbs) | Carton Cubes (cu ft) | Pallet Quantity | Qty. per Layer | Layers per Pallet |
|---|---|---|---|---|---|---|---|---|
| RL31EA | 9.75″ | 12.5″ | 21.5″ | 52 | 1.52 | 24 | 12 | 2 |
Send us your model number and we will confirm fit, price, and availability.
