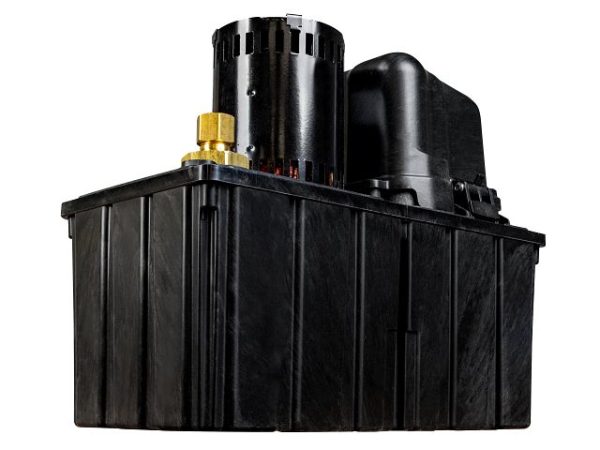

Little Giant’s HT-VCL Series are low-profile, high-temp condensate pumps rated for up to 212 degrees Fahrenheit. Designed for use in plenum applications, these pumps are ideal for steam humidifiers and boiler applications. They also boast a higher flow rating and increased shut-off versus competitive products. This Series is compliant with UL standard UL2043, “Fire Test for Heat and Visible Smoke Release for Discrete Products and Their Accessories Installed in Air-handling Spaces.”
Engineered with a hydraulic design to produce high volume flow with high-lift capability, the HT-VCL Series high-temp condensate pump is the ideal solution to handle high-temperature applications. It includes a float-activated switch for automatic high-level water detection. This pump automatically removes condensate from an air conditioner evaporator coil, refrigeration equipment coil, condensing furnace, dehumidifiers, condensing boiler, or steam-generated humidifier.
| Capacity | 350 gph @ 5′ |
| Shut Off | 32′ (9.1 m) |
| Max. Liquid Temp. | 212 °F (100 °C) |
| Discharge | 1/2″ Compression Fitting (12.7 mm) |
| Impeller | Glass-filled Polypropylene |
| Electrical | 115 V, 60 Hz, 1.9 A 208-230 V, 60 Hz, 1.1 A 277 V, 60 Hz, 0.9 A |
| Operation | Automatic |
| Head | GPH (LPH) |
| 5′ | 350 (1325) |
| 10′ | 320 (1211) |
| 15′ | 275 (1041) |
| 20′ | 225 (852) |
| 25′ | 160 (605.5) |
| 30′ | 60 (227) |
| Item | Model | Volts | Shut-Off | Safety Switch | Tubing Included |
|---|---|---|---|---|---|
| 553130101 | HT-VCL-30-P | 115 VAC | 32 ft | Yes | No |
| 553130102 | HT-VCL-30-P | 208 VAC / 230 VAC | 32 ft | Yes | No |
| 553130104 | HT-VCL-30-P | 277 VAC | 32 ft | Yes | No |
