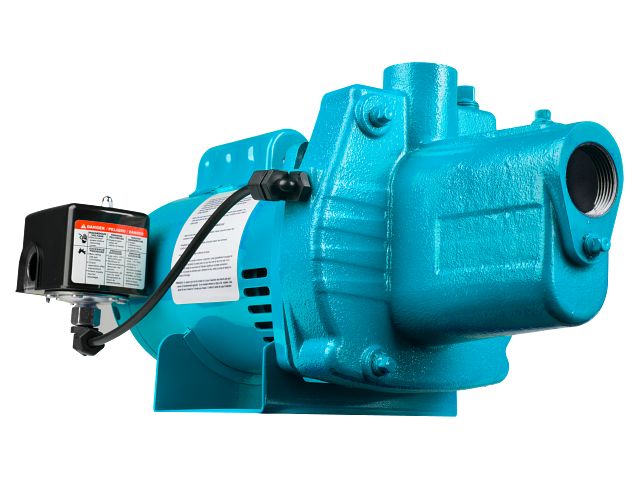

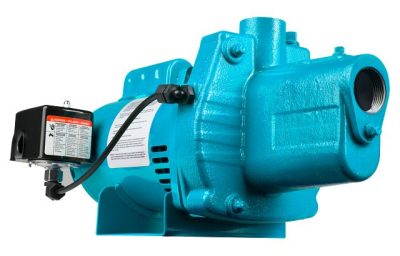

LGS Series Shallow Well Jet Pump

The LGS Series of shallow well jet pumps are ideal for supplying fresh water to rural homes, farms, and cabins. These pumps complete installations where the vertical distance from the pump to the pumping water level does not exceed 25 feet.

Features & Benefits

Cast iron casing
Dual voltage 115/230 V
Factory pre-set 30/50 pressure switch
1-1/4″ FNPT (31.7 mm) suction, 1″ FNPT (25.4 mm) discharge
Pressure gauge included with all models
Glass-filled thermoplastic impeller and diffuser
Clean-out plug to easily unclog nozzle
Tested and certified by CSA to UL 778 and CSA 108 for electrical safety and NSF/ANSI 372 for lead free compliance

Overview

The shallow well jet pump is ideal for the supply of fresh water to rural homes, farms, and cabins. This pump is suitable for installations where the vertical distance from the pump to the water level does not exceed 25 ft (7.6 m), including draw-down (less at high altitudes). The intake is 1-1/4″ FNPT while the discharge is 1″ FNPT. The pressure gauge port is 1/8″ NPT
