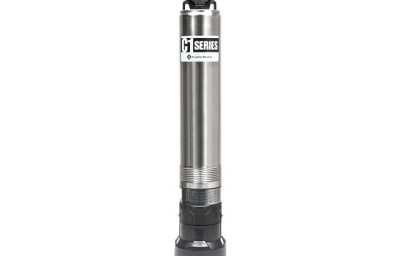

The Little Giant C1 Series cistern pump is ideal for a variety of pumping needs: cistern rainwater removal, filtered effluent service water, water reclamation, aeration, and other fountain or pond applications, and agriculture. The optimized hydraulic design allows for increased performance and decreased power usage.
Supplied with a removable 5″ base for secure and reliable mounting, the C1 Series cistern pump features a single-shell, compact design plus robust thermoplastic discharge head design to resist breakage during installation and operation. Made of corrosion-resistant materials, the C1 series cistern pump includes standard backflow prevention through a built-in, removable check valve.
| Flows | 10, 20 and 30 gpm |
| Wires | 2 |
| Leads | 10′ SJOOW |
| Shut Off | Over 100 psi |
| Discharge | 1-1/4″ FNPT (31.75 mm) |
| Impeller | Celcon |
| Electrical | 115 V, 60 Hz, 9 A 230 V, 60 Hz, 4.5 A |
| Operation | Manual |
| HP | Shut Off Height – 60Hz | Stages | Volts | Model | Item |
|---|---|---|---|---|---|
| 1/2 hp | 92 ft | 3 | 115 VAC | 30C1-05P4-2W115 | 90303005 |
| 1/2 hp | 135 ft | 4 | 115 VAC | 20C1-05P4-2W115 | 90302005 |
| 1/2 hp | 170 ft | 5 | 115 VAC | 20XC1-05P4-2W115 | 90302015 |
| 1/2 hp | 225 ft | 6 | 115 VAC | 10C1-05P4-2W115 | 90301005 |
| 1/2 hp | 92 ft | 3 | 230 VAC | 30C1-05P4-2W230 | 90303010 |
| 1/2 hp | 135 ft | 4 | 230 VAC | 20C1-05P4-2W230 | 90302010 |
| 1/2 hp | 170 ft | 5 | 230 VAC | 20XC1-05P4-2W230 | 90302020 |
| 1/2 hp | 225 ft | 6 | 230 VAC | 10C1-05P4-2W230 | 90301010 |
