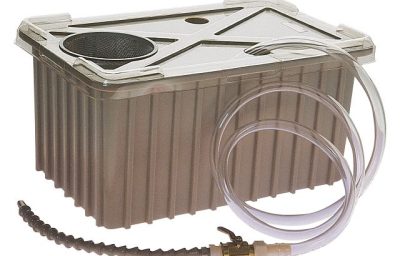

This machine tool coolant tank is for use on single-spindle drill presses, bench mills, tool grinders, single spindle tapping machines, cut-off saws, small lathes using water-soluble or light cutting oil. A pump is not included with the machine tool coolant tank.
The machine tool coolant tank includes choice of 5 or 10-gallon polyethylene tank, metal chip collector basket, baffle, 6 ft. plastic hose, flex nozzle, and brass control valve. All adaptors and fittings are included for use with recommended pumps.
| Tank Size | 5 or 10 gallon |
| Tank Material | Polypropylene |
| Hose | 4′ or 6′ options |
| Item | Model | Description |
|---|---|---|

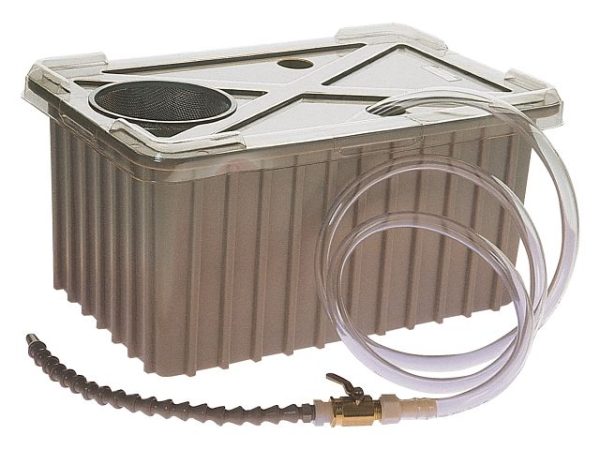

| 560040 | MCT-5P | MCT-5P Machine Coolant 5 Gallon Tank – Plastic |
| Item | Model | Volts | Maximum Flow Rate – 60Hz | Shut-Off | Flow Rate At 1ft | Cord Length |
|---|---|---|---|---|---|---|
| 527003 | NK-2 | 115 VAC | 5.42 gpm / 325 gph | 12.3 ft | 6 ft | |
| 503103 | 3E-12N | 115 VAC | 8.33 gpm / 500 gph | 17.3 ft | 6 ft | |
| 504103 | 4E-34N | 115 VAC | 13.5 gpm / 810 gph | 24.5 ft | 6 ft | |
| 501020 | 1-YS | 115 VAC | 3.42 gpm / 205 gph | 7.4 ft | 6 ft | |
| 526003 | NK-1 | 115 VAC | 3.5 gpm / 210 gph | 10.2 ft | 6 ft |
| Item | Model | Description |
|---|---|---|
| 560300 | MCT-10 | MCT-10 Machine Coolant 10 Gallon Tank-Steel |
| Item | Model | Volts | Maximum Flow Rate – 60Hz | Shut-Off | Flow Rate At 1ft | Cord Length |
|---|---|---|---|---|---|---|
| 503103 | 3E-12N | 115 VAC | 8.33 gpm / 500 gph | 17.3 ft | 6 ft | |
| 504103 | 4E-34N | 115 VAC | 13.5 gpm / 810 gph | 24.5 ft | 6 ft | |
| 506271 | 6-CIM-R (10-Ft.) | 115 VAC | 46 gpm / 2760 gph | 18 ft | 10 ft |
