Monarch NSPHE-S100 Series Sprinkler Pump and Repair Parts

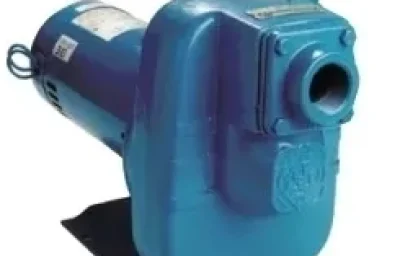

Monarch NSPHE-S100 Series Sprinkler Pump is the foundational model of the NSPHE Series, offering reliable performance for homeowners needing a dependable 1 HP solution for lawn and garden irrigation. Designed for efficiency and longevity, this self-priming pump is capable of delivering the high capacities required for residential turf sprinkling while remaining energy efficient throughout the season.
Encased in a rugged cast gray iron housing, the Monarch NSPHE-S100 Series Sprinkler Pump is built to resist environmental wear. Inside, it features a precision-engineered Noryl glass-filled impeller. This lightweight, smooth-surface impeller ensures maximum water flow efficiency and is highly resistant to corrosion and scale buildup, a common issue found in standard metal impellers.
The unit is powered by a high service factor 1.65 SF square flange motor equipped with thermal overload protection. This safety feature automatically shuts the pump down to prevent burnout if it overheats, ensuring years of trouble-free service. With a built-in check valve to hold prime, the Monarch NSPHE-S100 is a dependable and low-maintenance solution for your residential irrigation needs.
Key Features
- 1 HP Single Phase Motor: Dual voltage (115/230V) square flange motor designed for continuous duty with a high service factor.
- Thermal Overload Protection: Built-in safety mechanism protects the motor from overheating and burnout.
- Noryl Glass-Filled Impeller: Provides superior hydraulic efficiency and corrosion resistance compared to standard plastic.
- Self-Priming Design: Features a large pump body and integral suction check valve for fast priming and prevention of backflow.
- Mechanical Seal: Self-lubricating and self-adjusting seal requires zero maintenance.
- Easy Installation: Standard 1½” NPT suction and discharge ports fit most residential piping systems.
Applications
- Residential Lawn Sprinkling: Ideal for small to medium-sized lawns requiring consistent pressure.
- Garden Irrigation: Perfect for powering drip systems and soak hoses.
- Water Transfer: Efficiently moves water from shallow wells, lakes, or cisterns.
Technical Specifications
| Model | Suction | Discharge | CP | D | E | F | G | H | L | O | S | Y | Z | ZO |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NSPHE-S100 | 1½” NPT | 1½” NPT | 18.31″ | 5.62″ | 2.75″ | 3.00″ | 6.00″ | 0.44″ | 6.31″ | 11.87″ | 4.12″ | 5.56″ | 2.50″ | 8.12″ |
Performance Data
Capacities listed in U.S. Gallons Per Minute (GPM) based on discharge pressure at a 5 ft. lift.
| Model No. | HP | 10 PSI | 20 PSI | 30 PSI | 40 PSI | Max. PSI |
|---|---|---|---|---|---|---|
| NSPHE-S100 | 1 | 54 | 44 | 32 | 17 | 45 |
Electric Motor Specifications
| Model No. | Order No. | HP | SF | Voltage | Phase | Suct./Disch. | Ship Wt. |
|---|---|---|---|---|---|---|---|
| NSPHE-S100 | 614436 | 1 | 1.65 | 115/230V | 1 | 1½” x 1½” | 56 lbs. |

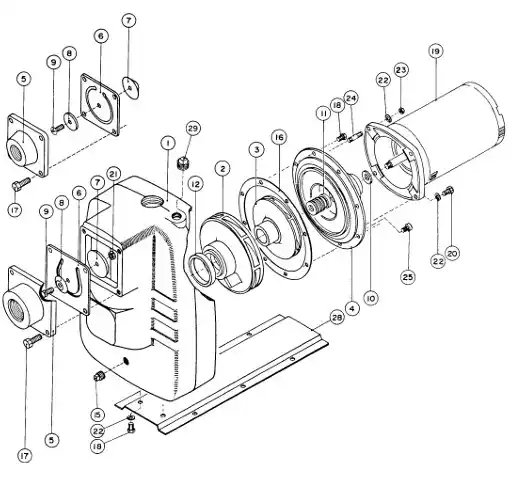

Repair Parts
| Ref. | Code # | Qty (S100) | Description |
|---|---|---|---|
| 1 | 433210 | 1 | Casing – Blue |
| 2 | 433137 | 1 | Diffuser |
| 3 | 433125 | 1 | Impeller (Noryl) |
| 4 | 433159 | 1 | Seal Plate-Sq.Fl. |
| 5 | 400111 | 1 | Valve Body |
| 6 | 190645 | 1 | Valve Gasket |
| 7 | 400079 | 1 | Top Weight |
| 8 | 174430 | 1 | Bottom Weight |
| 9 | 145860 | 1 | Screw |
| 10 | 191790 | 1 | Flinger |
| 11* | 240104 | 1 | Seal |
| 12* | 246238 | 1 | Diffuser Ring |
| 15 | 185620 | 1 | Pipe Plug 1/4 NPT |
| 16 | 193923 | 1 | Gasket |
| 17 | 120010 | 4 | Hex HD. Bolt 3/8 UNC x 1 |
| 18 | 119990 | 10 | Hex HD. Bolt 3/8 UNC x 7/8 |
| 19 | 204154 | 1 | Motor 1 HP*1PH*115/230V.Sq.Fl. |
| 20 | 120030 | 4 | Bolt 3/8 UNC x 1-1/2 |
| 22 | 176230 | 6 | Spring Washer 3/8 |
| 23 | 227830 | 4 | Nut 3/8 UNC |
| 25 | 140530 | 4 | Cap Screw 3/8 UNC x 1/2 |
| 28 | 433161 | 1 | Base Plate |
| 29 | 185650 | 1 | Pipe Plug 3/4 NPT |
