Monarch NSPHE-S150 Series Sprinkler Pump and Repair Parts

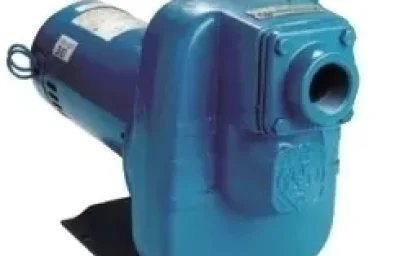

Monarch NSPHE-S150 Series Sprinkler Pump is a versatile mid-range sprinkler pump designed to provide the perfect balance of pressure and volume for residential irrigation systems. Powered by a durable 1-1/2 HP single-phase motor, this pump is engineered to draw water efficiently from lakes, ponds, or cisterns to keep lawns and turf green and healthy throughout the season.
The Monarch NSPHE-S150 Series Sprinkler Pump distinguishes itself with a heavy-duty cast gray iron casing and a precision-molded Noryl glass-filled impeller. This impeller design ensures a smooth surface for water flow, significantly increasing efficiency while resisting corrosion and abrasion. Unlike larger industrial models, the S150 features a square flange motor equipped with thermal overload protection, providing reliable safeguarding against motor burnout during continuous operation.
Installation and maintenance are simplified with the Monarch NSPHE-S150. It features 1-1/2-inch NPT suction and discharge ports and a built-in suction check valve that holds the prime, preventing backflow and eliminating the need for an external foot valve in many setups.
Key Features
- 1.5 HP Square Flange Motor: reliable single-phase motor (115/230 Volt) with a high service factor (1.47 SF).
- Thermal Overload Protection: Automatically shuts down the motor if internal temperatures rise too high, protecting your investment.
- Noryl Glass-Filled Impeller: Lightweight yet durable, offering high efficiency and resistance to rust and scale build-up.
- Self-Priming Capability: The large pump housing and integral check valve ensure fast priming and consistent performance.
- Maintenance-Free Seal: Features a mechanical, self-lubricating seal that self-adjusts for wear.
- Cast Iron Construction: Heavy-duty blue cast iron housing provides structural integrity and longevity.
Applications
- Residential Lawn Sprinkling: Ideal for medium-sized irrigation zones requiring up to 49 PSI.
- Garden Irrigation: Provides steady pressure for garden hoses and drip systems.
- Water Transfer: Excellent for filling tanks or moving water between storage containers.
Technical Specifications
| Model | Suction | Discharge | CP | D | E | F | G | H | L | O | S | Y | Z | ZO |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NSPHE-S150 | 1½” NPT | 1½” NPT | 18.31″ | 5.62″ | 2.75″ | 3.00″ | 6.00″ | 0.44″ | 6.31″ | 11.87″ | 4.12″ | 5.56″ | 2.50″ | 8.12″ |
Performance Data
Capacities listed in U.S. Gallons Per Minute (GPM) based on discharge pressure at a 5 ft. lift.
| Model No. | HP | 10 PSI | 20 PSI | 30 PSI | 40 PSI | Max. PSI |
|---|---|---|---|---|---|---|
| NSPHE-S150 | 1½ | 62 | 52 | 40 | 27 | 49 |
Electric Motor Specifications
| Model No. | Order No. | HP | SF | Voltage | Phase | Suct./Disch. | Ship Wt. |
|---|---|---|---|---|---|---|---|
| NSPHE-S150 | 614437 | 1½ | 1.47 | 115/230V | 1 | 1½” x 1½” | 60 lbs. |

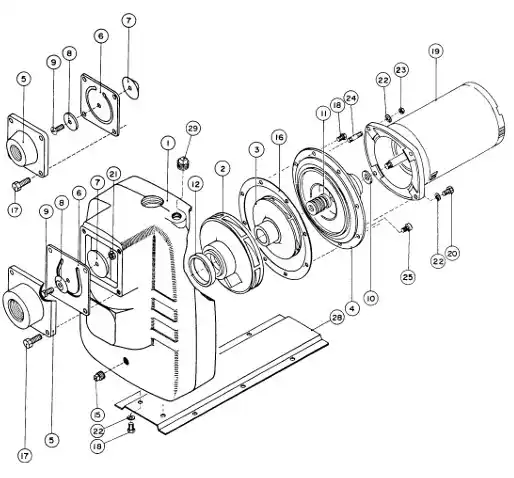

Repair Parts
| Ref. | Code # | Qty (S150) | Description |
|---|---|---|---|
| 1 | 433210 | 1 | Casing – Blue |
| 2 | 433137 | 1 | Diffuser |
| 3 | 433126 | 1 | Impeller (Noryl) |
| 4 | 433159 | 1 | Seal Plate-Sq.Fl. |
| 5 | 400111 | 1 | Valve Body |
| 6 | 190645 | 1 | Valve Gasket |
| 7 | 400079 | 1 | Top Weight |
| 8 | 174430 | 1 | Bottom Weight |
| 9 | 145860 | 1 | Screw |
| 10 | 191790 | 1 | Flinger |
| 11* | 240104 | 1 | Seal |
| 12* | 246238 | 1 | Diffuser Ring |
| 15 | 185620 | 1 | Pipe Plug 1/4 NPT |
| 16 | 193923 | 1 | Gasket |
| 17 | 120010 | 4 | Hex HD. Bolt 3/8 UNC x 1 |
| 18 | 119990 | 10 | Hex HD. Bolt 3/8 UNC x 7/8 |
| 19 | 204179 | 1 | Motor 1-1/2HP*1PH*115/230V. Sq.Fl. |
| 20 | 120030 | 4 | Bolt 3/8 UNC x 1-1/2 |
| 22 | 176230 | 6 | Spring Washer 3/8 |
| 23 | 227830 | 4 | Nut 3/8 UNC |
| 25 | 140530 | 4 | Cap Screw 3/8 UNC x 1/2 |
| 28 | 433161 | 1 | Base Plate |
| 29 | 185650 | 1 | Pipe Plug 3/4 NPT |
FAQs
What is the inlet and outlet size of the NSPHE-S150?
Does the NSPHE-S150 come with a power cord?
Is the impeller on the NSPHE-S150 metal or plastic?
What voltage should I use for the 1.5 HP motor?
Send us your model number and we will confirm fit, price, and availability.
