Monarch RLHE-S200 Series Sprinkler Pump & Repair Parts

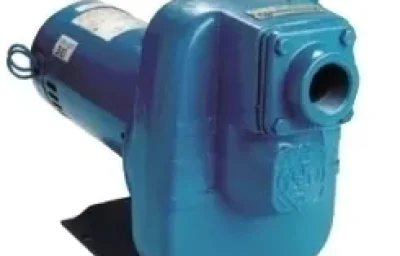

Monarch RLHE-S200 Series Sprinkler Pump and Repair Parts
Monarch RLHE-S200 Series Sprinkler Pump is a robust, high-performance self-priming sprinkler pump designed for homeowners with medium to large lawns and gardens. This 2 HP model delivers the ideal balance of pressure and flow rate to power multiple sprinkler heads, ensuring even coverage across your property.
Built with durability in mind, the Monarch RLHE-S200 Series Sprinkler Pump features a rugged cast iron housing that resists corrosion and withstands outdoor conditions. Its precision-engineered Noryl glass-filled impeller ensures smooth water flow, maximizing efficiency while minimizing energy consumption. The square flange motor includes built-in thermal overload protection, automatically shutting down to prevent burnout during extended use.
Designed for ease of installation and maintenance, the Monarch RLHE-S200 includes a built-in suction check valve to hold prime, eliminating the need for frequent re-priming. Its standard 2-inch NPT connections make it compatible with most residential irrigation systems.
Key Features
- 2 HP Dual Voltage Motor: Configurable for 115V or 230V single-phase power, with a high service factor for continuous duty.
- Thermal Overload Protection: Built-in safety feature guards against motor overheating and burnout.
- Noryl Glass-Filled Impeller: Lightweight, efficient, and highly resistant to corrosion and scale buildup.
- Self-Priming Design: Large cast iron housing and integral check valve enable fast priming and prevent backflow.
- Maintenance-Free Seal: Self-lubricating, self-adjusting mechanical seal requires no ongoing upkeep.
- Universal Connections: 2″ NPT suction and discharge ports fit standard residential irrigation lines.
Applications
- Residential Lawn Sprinkling: Perfect for medium-to-large lawns needing consistent pressure.
- Garden Irrigation: Powers drip systems, soak hoses, and multiple garden sprinklers.
- Water Transfer: Efficiently moves water from shallow wells, ponds, or cisterns.
Technical Specifications
| Model | Suction | Discharge | Overall Length | Overall Width | Overall Height | Ship Weight |
|---|---|---|---|---|---|---|
| RLHE-S200 | 2″ NPT | 2″ NPT | 20.31″ | 14.38″ | 12.00″ | 94 lbs. |
Performance Data
Capacities listed in U.S. Gallons Per Minute (GPM) based on discharge pressure at a 5 ft. lift:
| Model No. | HP | 10 PSI | 20 PSI | 30 PSI | 40 PSI | Max. PSI |
|---|---|---|---|---|---|---|
| RLHE-S200 | 2 | 92 | 82 | 64 | 45 | 54 |
Electric Motor Specifications
| Model No. | Order No. | HP | SF | Voltage | Phase | Suct./Disch. | Ship Wt. |
|---|---|---|---|---|---|---|---|
| RLHE-S200 | 614438-RL | 2 | 1.30 | 115/230V | 1 | 2″ x 2″ | 94 lbs. |

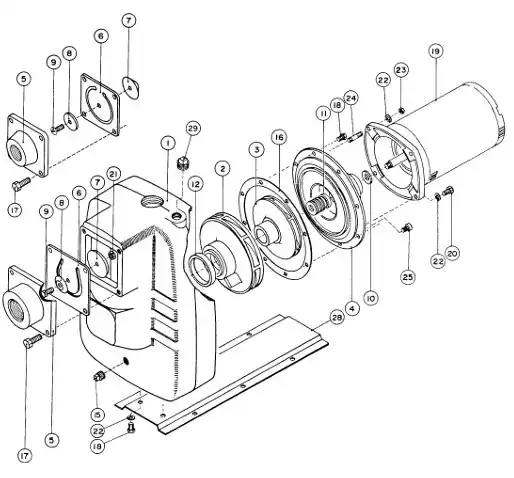

Repair Part
| Ref. | Code # | Qty (RLHE-S200) | Description |
|---|---|---|---|
| 1 | 433109 | 1 | Casing |
| 2 | 433138 | 1 | Diffuser |
| 3 | 433127 | 1 | Impeller (Noryl) |
| 4 | 433162 | 1 | Seal Plate-Sq.Fl. |
| 5 | 414730 | 1 | Valve Body |
| 6* | 191260 | 1 | Valve Gasket |
| 7 | 014740 | 1 | Top Weight |
| 8 | 013150 | 1 | Bottom Weight |
| 9 | 225750 | 1 | Bolt 1/4UNC x 1 |
| 10 | 191790 | 1 | Flinger |
| 11* | 240104 | 1 | Seal |
| 12* | 246238 | 1 | Diffuser Ring |
| 15 | 185650 | 1 | Pipe Plug 3/4 NPT |
| 16* | 193924 | 1 | Gasket |
