Monarch UP16M Submersible Utility Pump
Send us your model number and we will confirm fit, price, and availability.

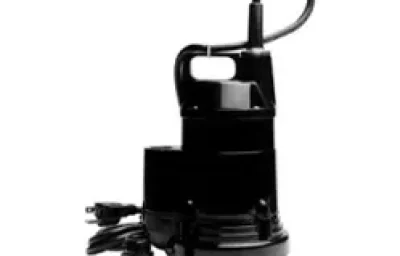

Monarch UP16M Series: Durable Aluminum Submersible Utility Pump
The Monarch UP16M Series Submersible Utility Pump is a versatile and robust solution designed for general water transfer and dewatering applications. Engineered with a corrosion-resistant aluminum casing, this pump offers superior heat dissipation compared to standard thermoplastic models, ensuring a longer lifespan and reliable performance during continuous duty operation.
Ideal for homeowners and maintenance professionals, the UP16M features a bottom suction design capable of pumping water down to within 1/4 inch of the surface. Whether you are draining a flooded basement, removing water from a flat roof, or emptying a pool cover, the UP16M delivers efficiency and ease of use.
Engineered for Performance and Durability
At the heart of the UP16M is a 1/6 HP, 115-volt motor that is “oil-free” and environmentally safe. The motor is permanently lubricated with a lip seal and features a stainless steel heat-treated shaft for added strength. With a 10-foot power cord and an included garden hose adapter, setup is instant and hassle-free.
Key Features and Benefits
- Superior Construction: Built with a corrosion-resistant aluminum pump casing which aids in heat dissipation, extending the life of the motor.
- Low-Level Pumping: The efficient bottom suction design removes water down to 1/4″ from the floor surface.
- Debris Management: Capable of handling solids up to 1/8″. Includes a built-in suction strainer and a removable filter screen for easy cleaning and impeller protection.
- Powerful Motor: 1/6 HP continuous duty motor with thermal overload protection and a stainless steel shaft.
- CSA Approved: Certified for safety and reliability (CSA 108 / UL 778).
- Easy Connectivity: Features a standard 3/4″ NPT discharge and comes with a convenient garden hose adapter for quick hook-up.
- Durable Impeller: Constructed of glass-reinforced thermoplastic for wear resistance.
Common Applications
- Dewatering: Removing water from basements, window wells, and crawl spaces.
- Maintenance: Draining water heaters, spas, and pool covers.
- Transfer: General water transfer where high portability is required.
Technical Specifications & Performance
The following tables detail the performance capabilities and ordering information for the Monarch UP16M Series.
Performance Chart
| Model No. | Total Head in Feet | Shut-Off Head (ft.) | |||
|---|---|---|---|---|---|
| 5 | 10 | 15 | 17 | ||
| Capacities in U.S. GPM | |||||
| UP16M | 20 | 14 | 7 | 4 | 19 |
Submersible Utility Pump – 3/4″ Discharge
| Model No. | Order No. | HP | Ship Wt. (lbs.) | Description |
|---|---|---|---|---|
| UP16M | 620137 | 1/6 | 3 | Submersible utility pump with garden hose adapter. |
