MS Series Marine Pump

MS Series Marine Pump

These stainless steel and bronze marine pumps come in four models and are meant to be used submerged or inline with a flooded suction. They are intended to circulate freshwater or saltwater through marine air conditioner heat exchanger coils. Each of our marine pumps includes a sturdy mounting bracket for securing the pump in position and holding it in place.

Features & Benefits

  • Non-corrosive stainless steel and bronze construction
  • All models have thermal protection
  • Oil-free, PSC motor that is environmentally friendly
  • Quiet operation
  • 6′ power cord
  • Mounting brackets included
  • Used submerged or in open air below water level

Overview

  • This is a normal operation for the pump. It ensures the pump does not run dry, and the impeller will remain submerged.  
  • There is an ON and OFF switch. When the ON gets activated, it pumps out water until it reaches a level of about half the bottom tank.  
Click to rate this post!
[Total: 0 Average: 0]

Specifications

Performance

Performance

Head MS320P-6B GPH (LPH) MS580P-6B GPH (LPH) MS580P-6-2B GPH (LPH) MS900P-6B GPH (LPH) MS1200P-6B GPH (LPH)
1′ 375 (1420) 850 (3220) 850 (3220) 890 (3370) 1150 (4350)
5′ 310 (1170) 705 (2670) 705 (2670) 775 (2930) 1070 (4050)
10′ 205 (775) 450 (1700) 450 (1700) 575 (2175) 890 (3370)
15′ 180 (680) 600 (270)

Order Information

MS_Series_Marine_Pump_with_Small_Brackets.psd

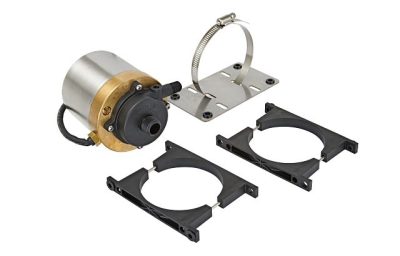

MS Series Marine Pump with Bracket

Item Model Maximum Flow Rate – 60Hz
517200001 MS320P-6B 6.25 gpm / 375 gph
MS_Series_Marine_Pump_with_Large_Brackets.psd

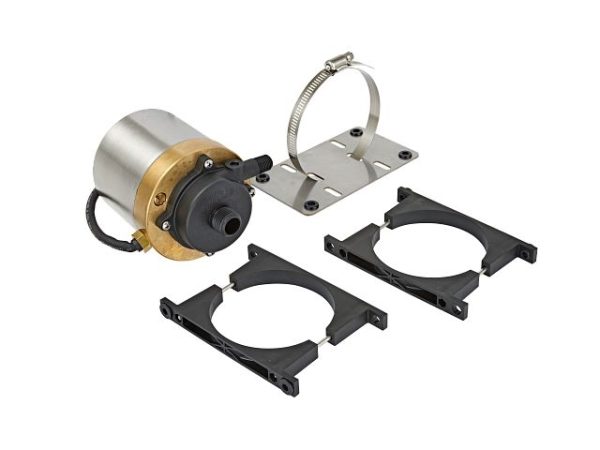

MS Series Marine Pump with Large Bracket

Item Model Maximum Flow Rate – 60Hz
517200003 MS580P-6B 14.17 gpm / 850 gph
517200004 MS580P-6-2B 14.17 gpm / 850 gph
517200005 MS900P-6B 14.83 gpm / 890 gph
517200006 MS1200P-6B 19.16 gpm / 1150 gph
